Paper Feed Mechanism (ASF)

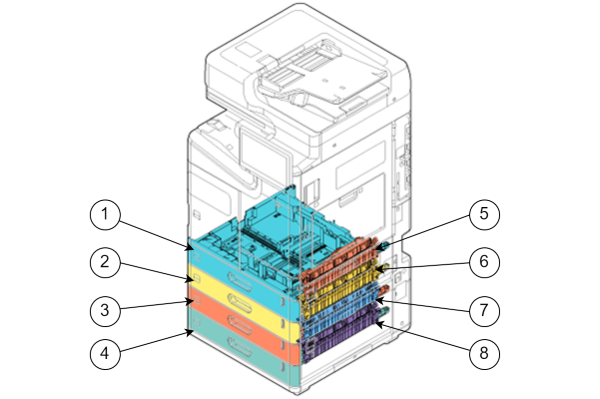

| No. | Name |
|---|---|
| 1 | C1 Cassette |
| 2 | C2 Cassette |
| 3 | C3 Cassette |
| 4 | C4 Cassette |
| 5 | C1 Pickup Unit |
| 6 | C2 Pickup Unit |
| 7 | C3 Pickup Unit |
| 8 | C4 Pickup Unit |
| No. | Name |
|---|---|
| 1 | Torque Limiter |
| 2 | PW Sensor Unit |
| 3 | C1 Pickup Roller |
| 4 | C2 Pickup Roller |
| 5 | C3 Pickup Roller |
| 6 | C4 Pickup Roller |

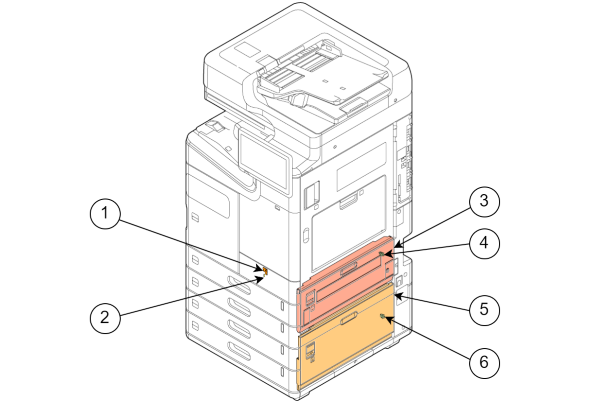

| No. | Name |
|---|---|
| 1 | Stay Plate |
| 2 | Pin |
3 |
Main Unit Paper Feed Cover |
| 4 | Main Unit Paper Feed Cover Sensor |
| 5 | Additional Paper Feed Cover |
| 6 | Additional Paper Feed Cover Sensor |

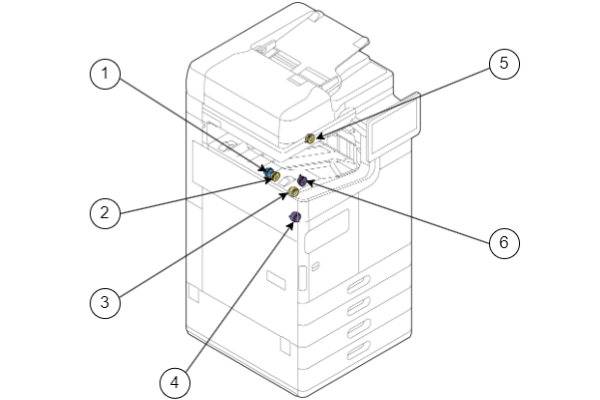

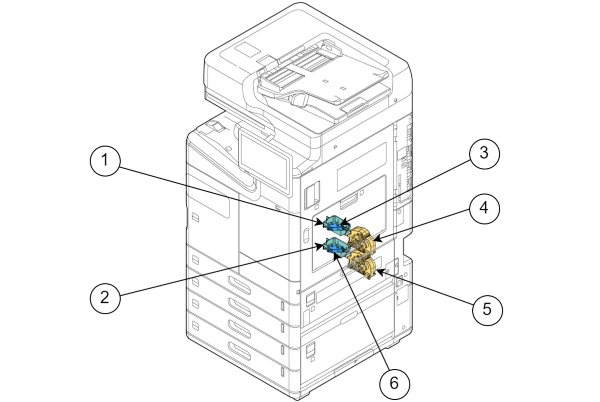

| No. | Name |
|---|---|
| 1 | C1 Closer Unit |
| 2 | C2 Closer Unit |
| 3 | C1 Damper |
| 4 | C1 Liftup Motor |
| 5 | C2 Liftup Motor |
| 6 | C2 Damper |

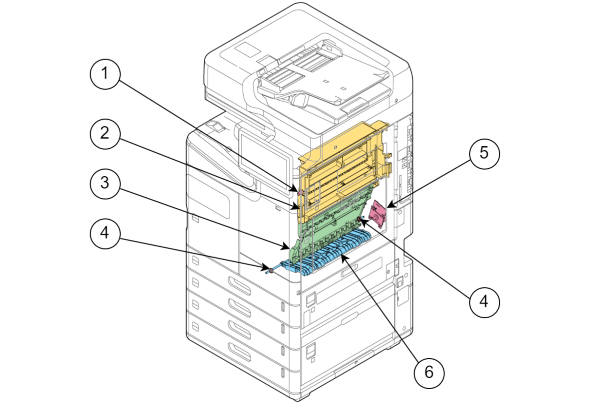

| No. | Name |
|---|---|
| 1 | Spring, Right Door, 23mm |
| 2 | Paper Path, Right Door, Upper |
| 3 | Paper Path, Right Door, Middle |
| 4 | Bearing x2 |
| 5 | Paper Feed Motor |
| 6 | Paper Guide Feed1 Assy |

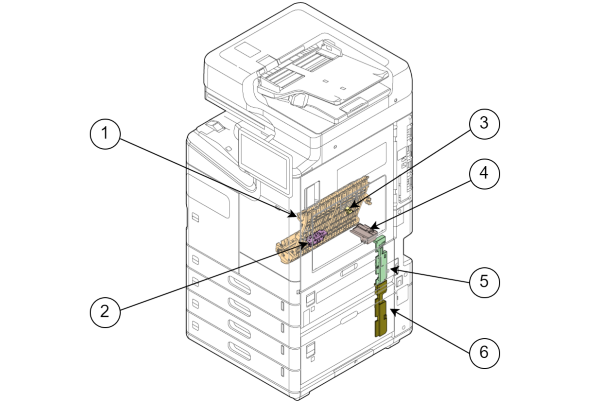

| No. | Name |
|---|---|
| 1 | Paper Path, Right Door, Out Side |
| 2 | Follower Roller Assy |
| 3 | Right Door Holder Lever |
| 4 | Connector Cover ID:911 |
5 |
Connector Cover ID:912 |
| 6 | Connector Cover ID:971 |

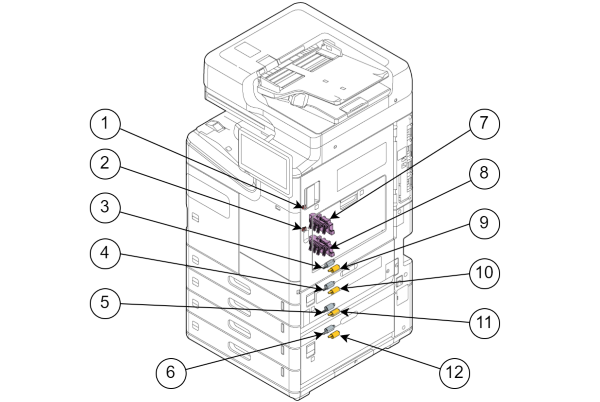

| No. | Name |
|---|---|
| 1 | C1 Cassette Sensor |
| 2 | C2 Cassette Sensor |
| 3 | C1 Retard Roller |
| 4 | C2 Retard Roller |
| 5 | C3 Retard Roller |
| 6 | C4 Retard Roller |
| 7 | C1 Paper Size Detection Sensor Assy |
| 8 | C2 Paper Size Detection Sensor Assy |
| 9 | C1 Retard Roller |
| 10 | C2 Retard Roller |
| 11 | C3 Retard Roller |
| 12 | C4 Retard Roller |

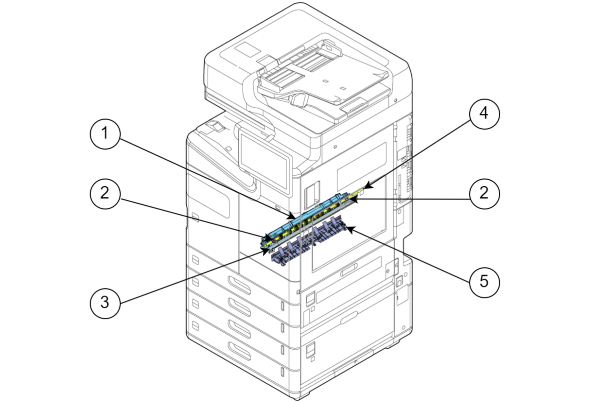

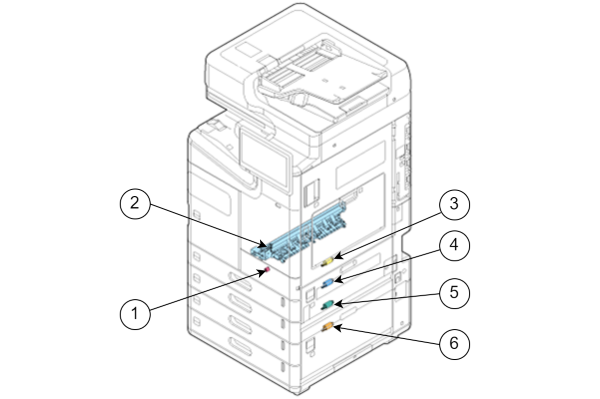

| No. | Name |
|---|---|
| 1 | Registration Unit |
| 2 | Bearing |
| 3 | Registration Roller Support |
| 4 | Registration Roller |
| 5 | Pre-PW Paper Guide |
