Tray Lifting Gear Block Assy

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.

  2. Remove 1 screw of the Rear Cover, Sub (A).

  3. Put your finger on the recess of the rear cover, sub (A) and open it to the left to remove it.


    • : 4x10DC

  4. Remove 3 screws of the Rear Cover, Upper (A).

  5. Slightly raise the top cover (B) and remove the rear cover, upper (A).


    • : 4x10DC
  6. Remove 2 screws and remove the Rear Cover, Lower (A).
    • : 4x10DC

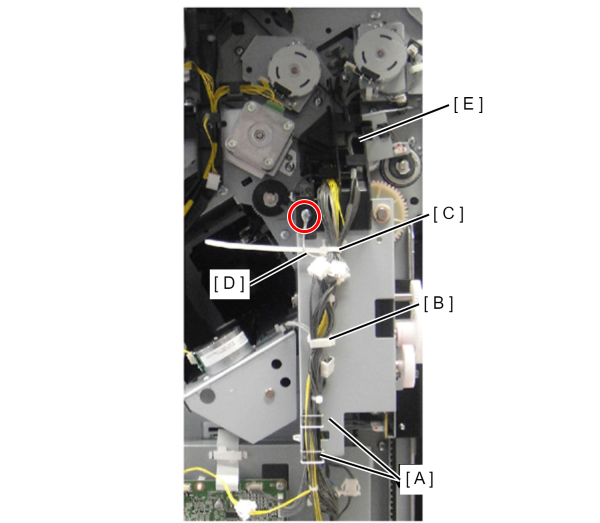

  7. Remove the transparent harness cover (A) (x2).
  8. Release the harness from the clamp (B).
  9. Using a precision screwdriver, remove the tie wrap (C).
  10. Remove 1 screw and disconnect the ground wire (D).
  11. Release the harness from the harness guide (E) and remove the harness guide (E).

    • : 4x8D/P

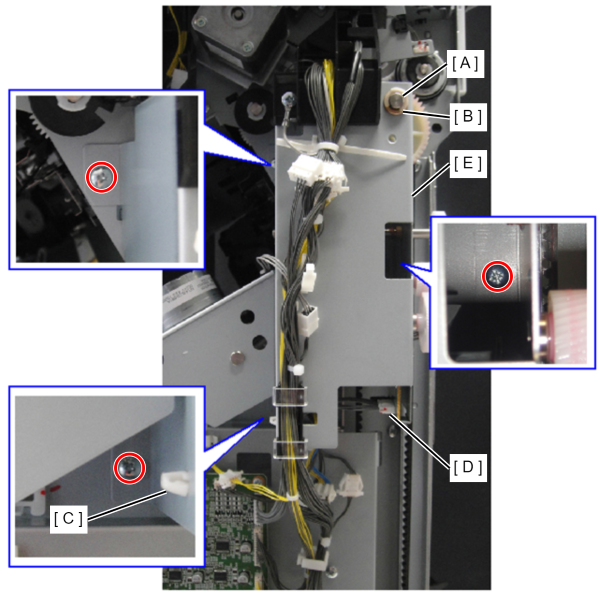

  12. Remove the plastic E-ring (A) and bearing (B).
  13. Remove the clamp (C).
  14. Remove 3 screws.
  15. Disconnect the cable (D) from the connector and remove the Tray Lifting Gear Block Assy (E).

    • : 4x8D/P
