IN FIN Rear-Edge Tapping Motor

  1. Refer to the following and remove the inner finisher from the printer.
    Inner Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Inner Finisher Unit from the Main Unit, the power of the Main Unit must be turned off.
  2. Remove the two screws and remove the tray assembly (A).

    • : 4x8DC/BK/P
  3. Open the cartridge cover (A) and remove the Staple Cartridge (B).
  4. Remove 1 screw of the Housing Front (A).
    • : 3x8DC
  5. Open the cartridge cover (A) and remove the screw securing the Housing Front.
    • : 3x8DC
  6. Lift the Housing Front  (A) to unhook.
  7. Open the right side of the Housing Front  (A) and slide it to the left to remove the interference with the rail (B) and remove the Housing Front (A).


    Check Point / チェックポイント

    Be careful the Housing Front (A) can easily get caught by extension spring on the inside.
    Assembly / 組み立て

    Install the Housing Front (A) with the cartridge cover (B) opening. The protrusion inside the cartridge cover (B) may contact the cover open sensor (C) and damage it.
  8. Remove 2 screws of the Housing Rear (A).
    • : 3x8DC
  9. Open the upper side of the Housing Rear (A) and lift it diagonally upward to remove it.


    Assembly / 組み立て

    Install the Housing Rear by hooking the inner hook to the frame (A).
  10. Remove the E-ring (A).
  11. Remove 2 screws, then remove the Gear Assy (A).

    • : 3x8D

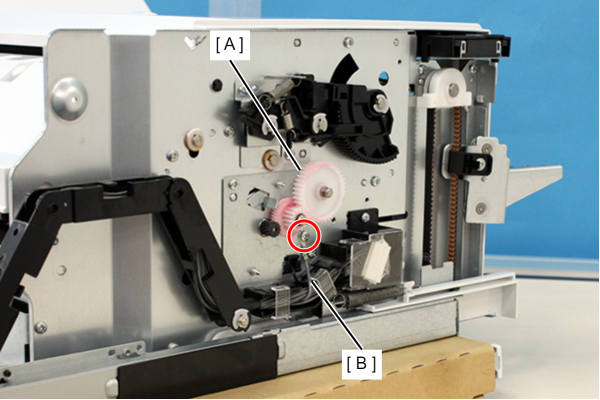

  12. Remove the gear (A), remove 1 screw, and remove the Ground Cable (B).

    • : 3x8D

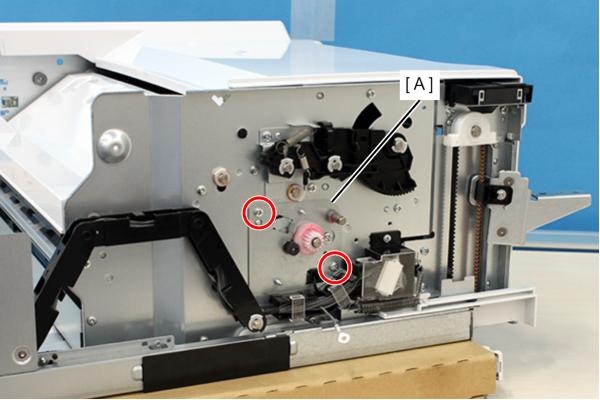

  13. Remove the 2 screws and remove the IN FIN Rear-Edge Tapping Motor (A).

    • : 3x8D

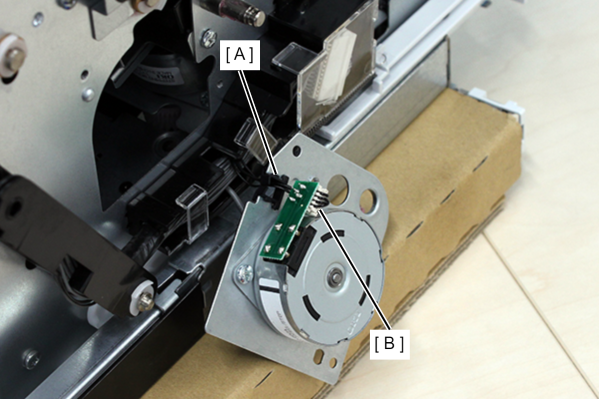

  14. Release the cable from the clamp and disconnect from the connector.

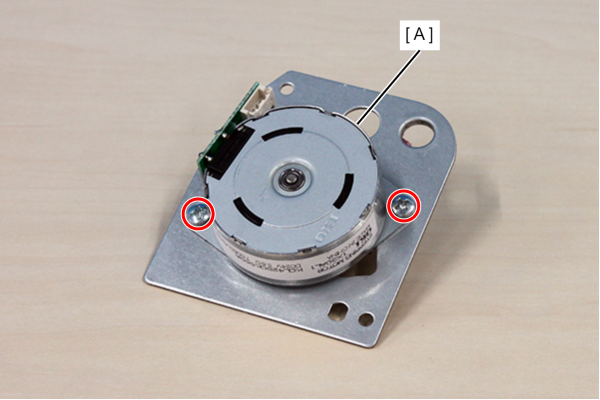

  15. Remove 2 screws and remove the IN FIN Rear-Edge Tapping Motor (A).
