301060204 1st Paper Eject Tray Full Stack Sensor Lower

Program No. Menu Name Judgment method Remarks
301060204 1st Paper Eject Tray Full Stack Sensor Lower Shield the sensor from light with paper, etc. TRUE: No detection
FALSE: Detection
Default：TRUE

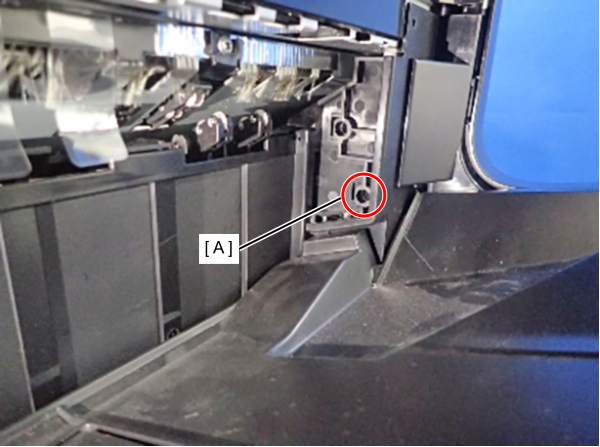

  1. Check the detection status of the sensor by holding the paper or your hand over the point (A) in the figure from the direction of the arrow.
