C3 Pulling Unit

  1. Open the additional cassette paper feed cover (A).
  2. Release the hook with a flathead screwdriver, etc., and remove the Additional Right Decorative Cover Rear (A).
  3. Remove the 3 screws and remove the Additional Rear Cover (A) in the direction of the arrow.
  4. Pull out the C3 cassette (A). (about 10 cm)

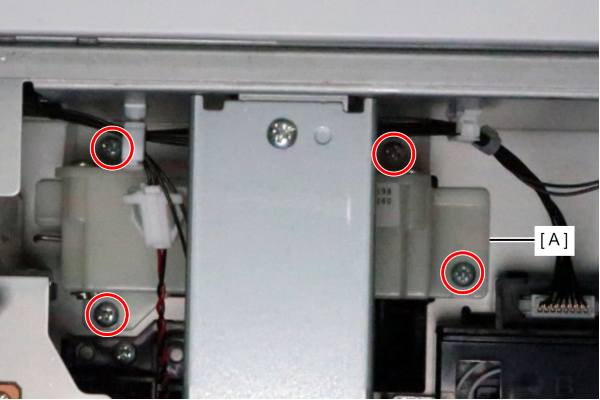

  5. Remove 4 screws, and remove the C3 Pulling Unit (A).

    • : 3x8D/P

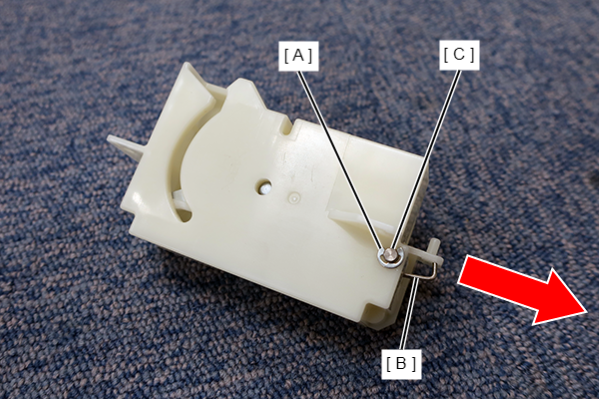

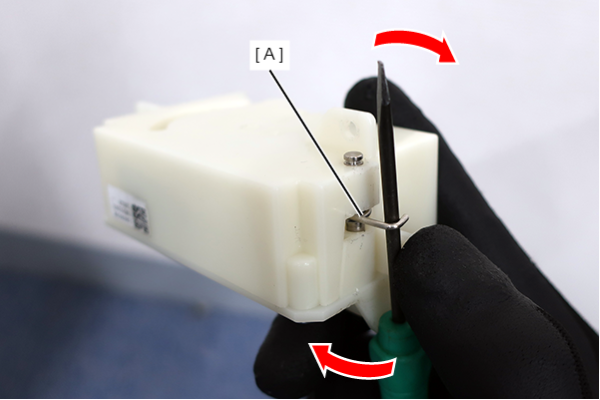

  6. Remove the E-ring (A) and remove the pin (C) while pulling the damper lever (B) in the direction of the arrow.

    Caution / 注意
    • Be sure to remove the pins before opening the cover, as opening the cover before removing the pins may damage the cover.
    • The damper has a strong tension, so be careful not to damage the parts or injure your fingers when pulling the lever.
    Note / 補足

    When pulling the damper lever (A), it is easier to work by using the principle of leverage with a tool such as a flathead screwdriver.
    Assembly / 組み立て

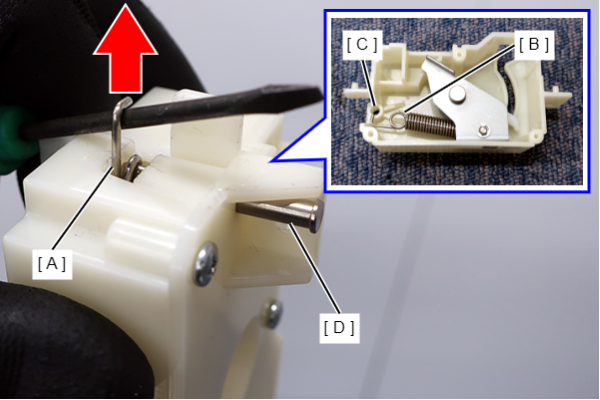

    • Pull the damper lever (A), align the damper ring (B) with the case hole (C), and attach the pin (D) through the ring and hole.

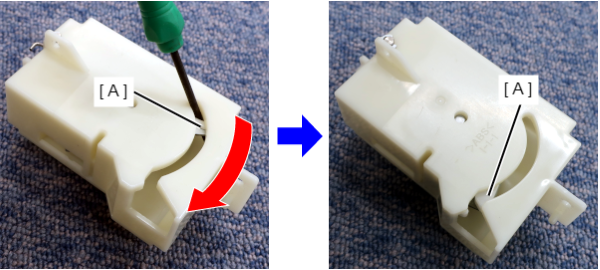

    • After installing the pin, move the C3 Damper (A) to the position shown in the figure using a flat tipped tool such as a flathead screwdriver.

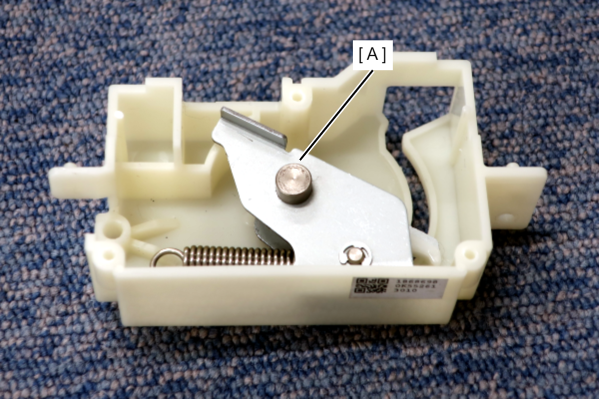

  7. Remove the 3 screw and remove the cover (A).

    • : 3x10T/P

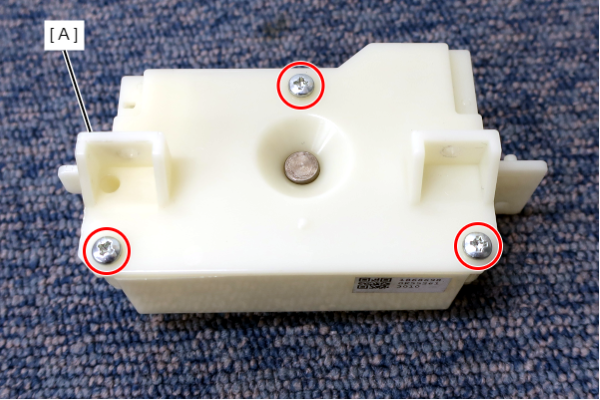

  8. Remove the C3 Damper (A).

    • : 3x10DW/P
