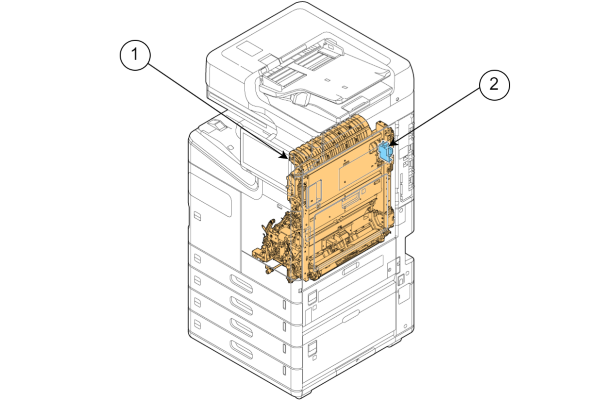

Duplex printing mechanism
| No. | Name |
|---|---|
| 1 | Right Door Unit |
| 2 | Right Door Cable Cover |
