303010210 ADF Post PF Roller 2 Paper Feed Sensor

Program No. Menu Name Judgment method Remarks
303010210 ADF Post PF Roller 2 Paper Feed Sensor Pass the paper through the ADF Paper Feed Path and check. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Open the ADF unit (A).

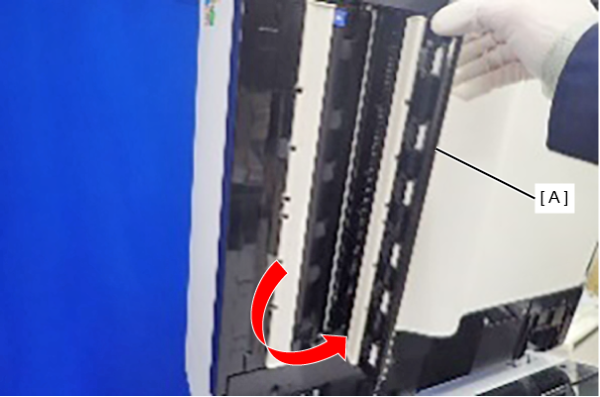

  2. Open the cover (A) shown below.

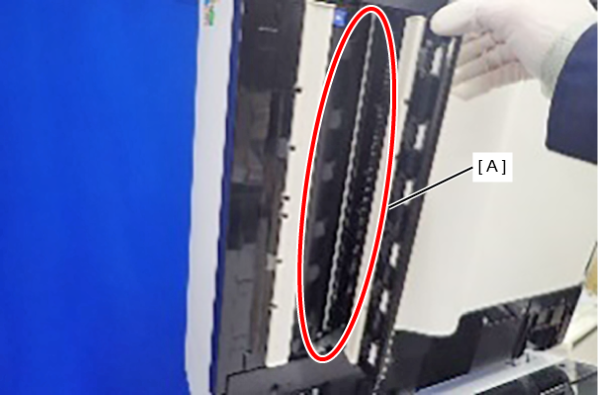

  3. Insert a sheet of paper through the gap (A) shown below.

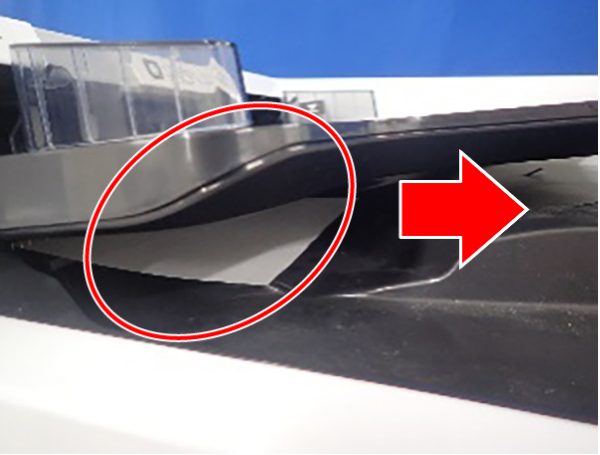

  4. Gently pull out the paper from the paper ejection side of the ADF and check the sensor detection status.
