301020217 Pre-Registration Sensor

Program No. Menu Name Judgment method Remarks
301020217 Pre-Registration Sensor

Insert the paper into the sensor parts.

TRUE: Detection
FALSE: No Detection
Default: FALSE

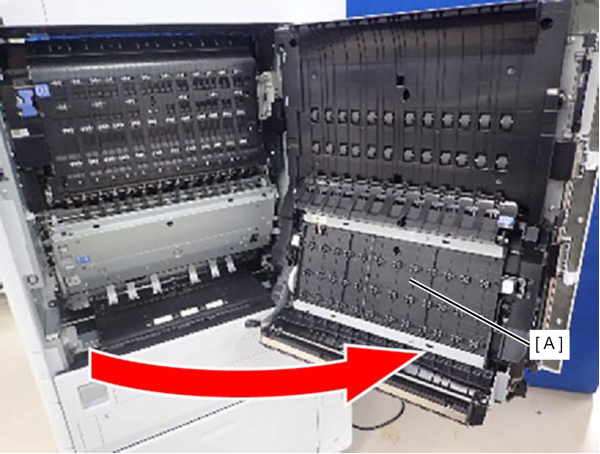

  1. Open the right door unit (A).

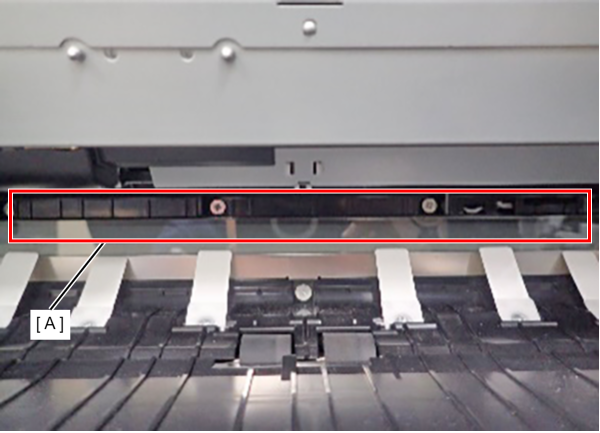

  2. Check the sensor detection status by inserting/removing a sheet of paper in/from the portion (A) in the figure.
