306020207 FIN Processing Paper Sensor

Program No. Menu Name Judgment method Remarks
306020207 FIN Processing Paper Sensor Shield the sensor from light with paper, etc. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Lift the Bundle Paper Ejection Unit (A) in the direction of the arrow.


    Caution / 注意

    Be careful not to touch the Anti Static Brush.

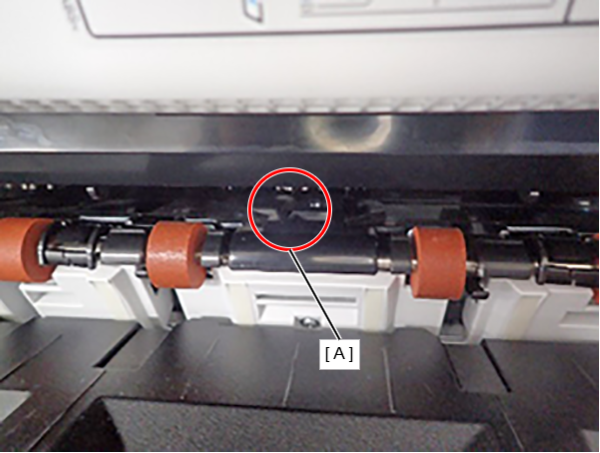

  2. Check the sensor detection status by holding a sheet of paper or your hand over the point (A) shown below.
