Paper Tray Link Lever

  1. Open the Paper Tray (A).

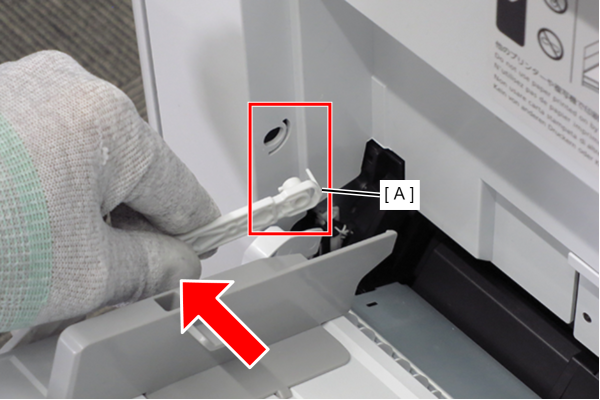

  2. Flex the Paper Tray Link Lever (A) to release the shaft and tab of the Paper Tray Link Lever (A) from the main unit.

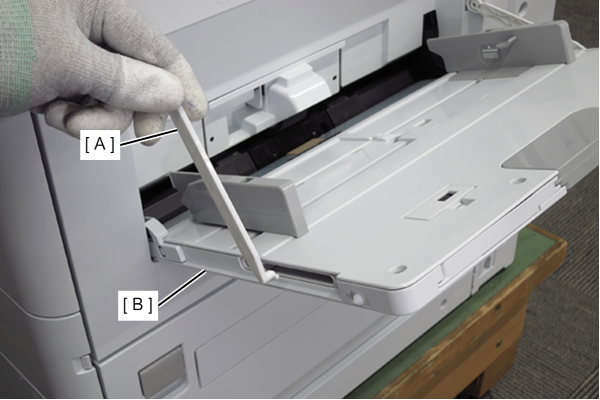

  3. Remove the Paper Tray link lever (A) from the Paper tray (B).


    Caution / 注意

    Hold the Paper tray (B) when removing the second Paper Tray link lever.
    The Paper Tray (B) may fall.
