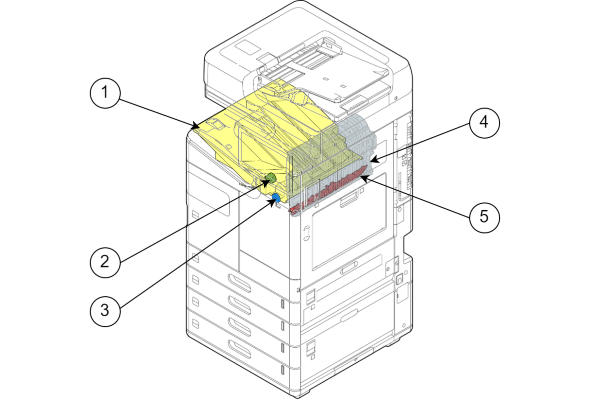

Paper Ejection Mechanism (EJ)
| No. | Name |
|---|---|
| 1 | FD Stacker Assy |
| 2 | FD Clutch |
| 3 | Gear 1 (diameter 35) |
| 4 | D3 Unit |
| 5 | Post-Head Paper Guide Assy |
