2011303 Adsorption Check Pattern(Margin 3mm)

Program No.

Pattern Name

Specifications

Pattern Image (the arrow indicates the paper feed direction)

Target image quality defect

2011203

Adsorption Check Pattern(Margin 3mm)

  • Pattern outline: Prints a 20105 Adsorption Check pattern paper margin 3mm x 3mm.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

  • Ruled line misalignment

  • Color shift

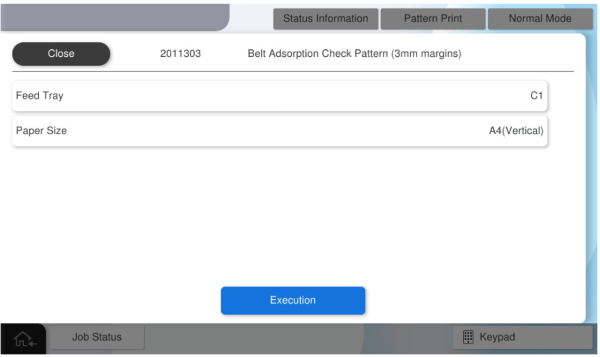

  1. Start the service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].
  3. Select [Check Pattern Print] tab.
  4. Select [Adsorption Check Pattern(Margin 3mm)].
  5. Press each setting item button to make the print settings.


    The selectable items are as follows.

    Program No. Pattern Name Setting Items Choice
    2011203 Adsorption Check Pattern(Margin 3mm) Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
    Available Paper Sizes A4 (Vertical), Letter (Vertical)
    Caution / 注意

    Make sure the paper orientation is as specified (LEF/Vertical).

    If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
  6. Press [Execution].
