Right Door Unit

  1. Remove the 4 screws and remove the right cover sub (A).
    • : 3x10DW
  2. Remove the 1 screw and remove the right cover sub lower (A).
    • : 3x10DW
  3. Pull the lever to open the Right Door Unit (A).
  4. Release the hook and remove the right door cable cover (A).



    Assembly / 組み立て
    • Insert the tab of the right door cable cover (A) into the frame.

    • Align the two dowels on the right door cable cover (A) with the two holes on the frame and install it.
  5. Disconnect the 3 cables from the connectors.

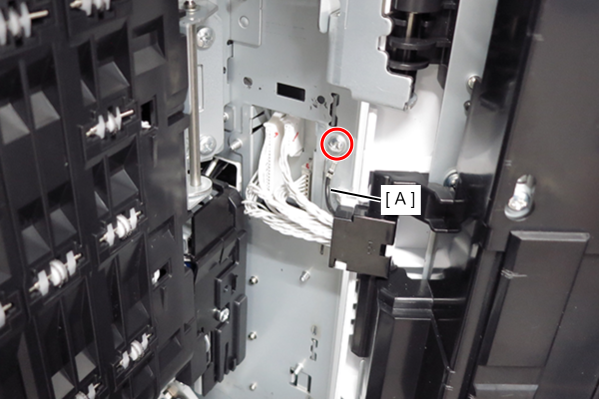

  6. Remove 1 screw and disconnect the ground wire (A).
    • : 3x8D

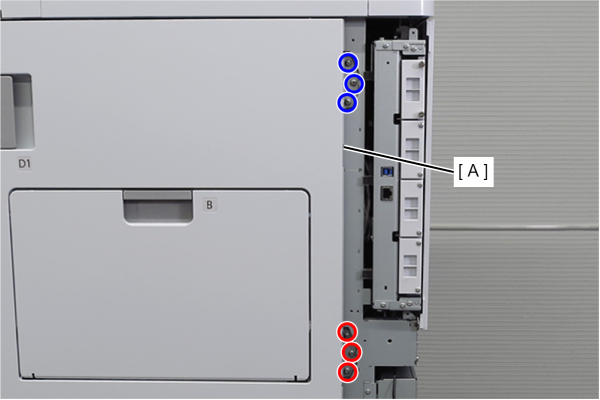

  7. Remove the 3 lower screws that secure the Right Door Unit (A).
  8. Remove the 3 upper screws that secure the Right Door Unit (A).
    • : 4x8D

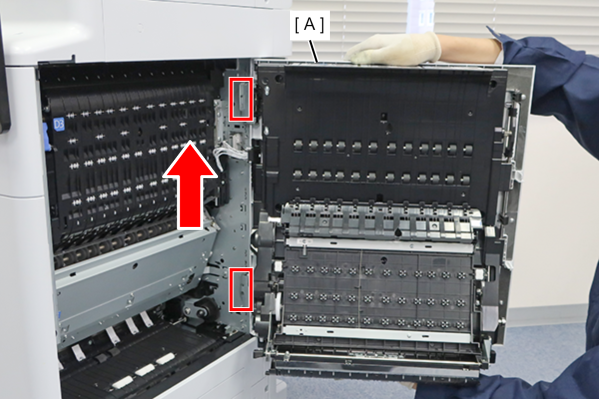

  9. Support the bottom of the Right Door Unit (A) and lift it to release the 2 hooks and remove the Right Door Unit (A).


    Caution / 注意

    Be careful not to touch the paper feed path of the Right Door Unit.
