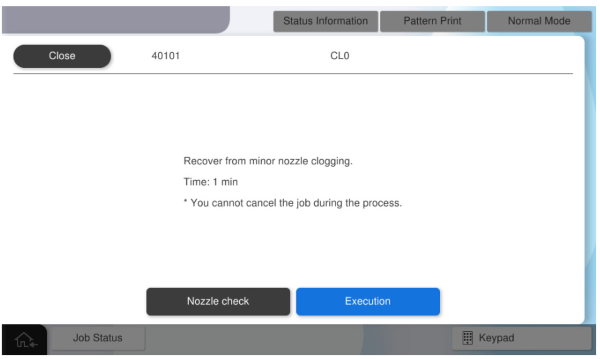

40101 CL0

Run the head cleaning (CL0) indepandently.

Note / 補足
  • Cleaning intensity: CL0<CL1<CL2
  • When performing head cleaning in user mode, the optimal head cleaning type is automatically selected according to the amount of missing nozzles (optional selection not possible).
  1. Start the service support mode.
  2. Select [04 Maintenance].
  3. Select [40101 CL0].
  4. Press [Execusion] to excute the CL0.

    • To perform a nozzle check, press [Nozzle Check].
    • Press [Nozzle Check] executes the 20103 color gradation pattern.
