20201 Paper feed confirmation

Check the paper passing of the main unit (blank paper passing). Various settings, such as the Feed Tray, Output Tray, and Feed Speed, can be changed to any values.

Caution / 注意
  1. Start the service support mode.
  2. Select [02 Check Pattern Print / Paper Feed Confirmation].

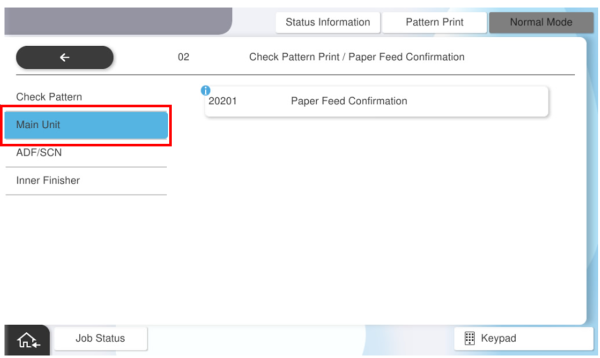

  3. Select [Main Unit] tab.
  4. Select [20201 Paper Feed Confirmation].

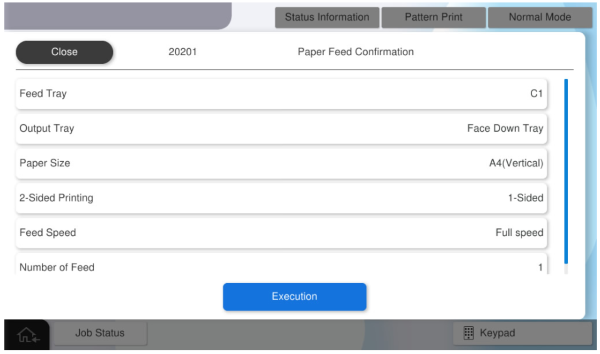

  5. Press each setting item button to make the print settings.


  6. Press [Execution] after completing the settings.



    The parameters that can be set are as follows.

    Setting Items Selection
    Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
    Output tray Face Down Output Tray, Inner tray
    Available Paper Sizes A4 (Vertical), Letter (Vertical), A3, Ledger
    2-Sided setting 1-sided, 2-sided
    Feed Speed Full Speed,Low Speed(25 ppm)
    Number of Feed 1 - 100 sheets
    Note / 補足

    For color print models, full speed varies by model. (60/50/40 ppm)
    Caution / 注意

    Make sure the paper orientation is as specified (LEF/Vertical).

    If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
