Rear Belt Driving Serrated Roller

Rear Belt Driving Serrated Roller
Position

  1. Pull the lever to open the Right Door Unit (A).

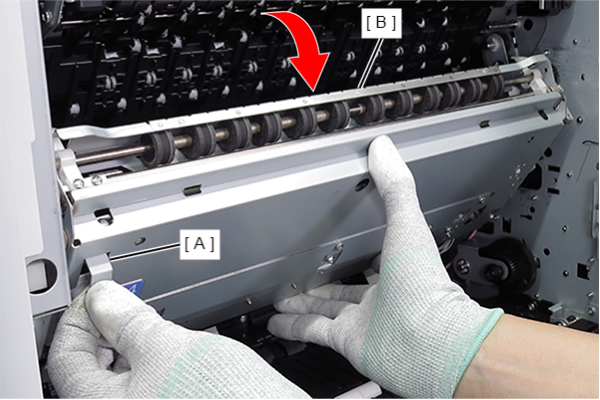

  2. Pull the lever (A) to open the belt unit (B).

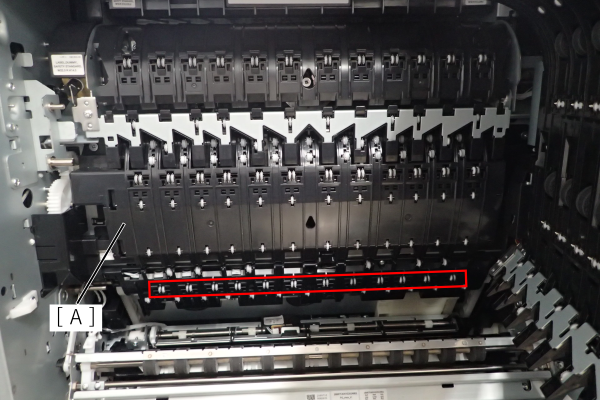

  3. The serrated roller framed in red is on the paper ejection path (A).

Cleaning method

Wet the cleaner stick sponge with water and clean in the same direction as the roller rotates.

If the cleaner stick sponge becomes dirty, clean it on the other side.
