Regular Maintenance

To prevent paper jam or other errors from occurring, make sure to visually check them when you have a chance such as when replacing periodic replacement parts, and clean them if necessary.

Cleaning Tools
Name Availability Part code Remarks
Cleaner stick - 1703008 Included inside the printer
cleaning sponge - 1910813 -
Non-woven

- -
Diluted alcohol

- -
Pure water

- -

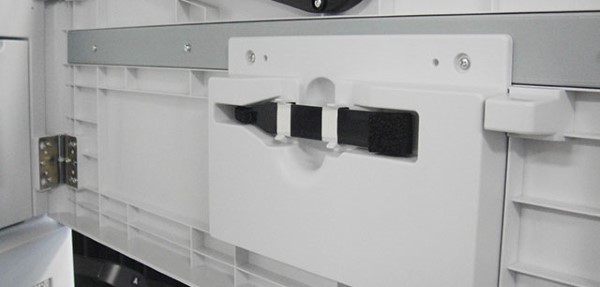

Location of the Cleaner Stick

The Cleaner Stick is located on inner side of the Front Cover.


List of Regular Maintenance Parts
Sensor
Note / 補足
  • The following sensors can be cleaned by the user. A message prompting cleaning will be displayed on the user panel depending on the amount of paper dust accumulated.
    • Head Rear Sensor *
    • Glass of the PW Sensor.
      * A message is also displayed when paper dust has accumulated on the head front sensor. If paper dust has accumulated on the head front sensor, there is a high possibility that paper dust has also accumulated on the head rear sensor.
      * Head front sensor is automatically cleaned by the machine every 2,000 sheets, so cleaning by the CE or user is not required.

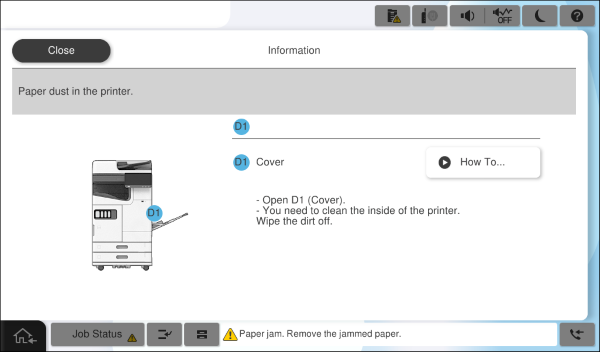

  • An example of a message prompting cleaning is shown below. When you press the "View Instructions" button, an animation will start playing that explains how to clean.
No. Target parts Target of replacement unit Cleaning cycle Cleaning time
(Single Unit)

Cleaning time
Total

 Cleaning Tools Remarks Detail
1

Paper Tray Post-Pickup Sensor

Main Unit 1.2 million sheets 1 min. 20 sec.

16 min. 45 sec.
*Actual working time is 14 minutes 20 seconds because there are duplicate tasks such as taking out the cleaner stick and opening the covers.

 Cleaner stick

sensor     Sensors



2

Duplex Paper Feed Sensor

Main Unit 15 sec.
3

Post-Reversing Paper Feed Sensor

Main Unit 15 sec.
4

1st Paper Eject Tray Pre-Eject Sensor

Main Unit 1 min. 25 sec.
5

2nd Paper Eject Tray Pre-Eject Sensor

Floor Bridge Unit B*1 10 min. 40 sec.
6 Post-Belt Sensor Main Unit 15 sec.
7 Post-Head Sensor Main Unit 15 sec. None
  • Possible for users to cleaning
8 Pre-Printing Sensor Main Unit 25 sec.
9 Pre-Resistration Paper Sensor Main Unit 20 sec. Cleaner stick
10 PW Sensor Glass Main Unit 20 sec.
  • Possible for users to cleaning
11 C1 Paper Feed Sensor Main Unit 15 sec.
12 C2 Paper Feed Sensor Main Unit 15 sec.
13 C3 Paper Feed Sensor Additional Cassette*1 15 sec.
14 C4 Paper Feed Sensor Additional Cassette*1 15 sec.
15 BRG Paper Path Paper Feed Sensor 1 Floor Bridge Unit*1 15 sec.
16 Belt unit (paper dust collection box) Main Unit 500,000 sheets*2 3 min. 30 sec. ← None
Belt unit (paper dust collection box)

*1 Depends on options installed.

*2 The cleaning cycle varies depending on the amount of paper dust on the paper (if there is a lot of paper dust, cleaning every 500,000 sheets is recommended). When the paper dust collection box becomes full of paper dust, the paper dust falls into the paper path.


Rollers
No. Target parts Target of replacement unit Cleaning cycle Cleaning time
(Single Unit)

Cleaning time
Total

 Cleaning Tools Remarks Detail
1

EJ3 Driving Roller

Main Unit*3

 1.2 million sheets






 40 sec.

4 min.
*Actual working time is 3 minutes because there are duplicate tasks such as taking out the cleaner stick and opening the covers.

 Cleaner sponge To prevent paper transfer due to ink adhering to the roller.





 Rollers
2

EJ3 Driving Serrated Roller

Floor Bridge Unit B*3 40 sec.
3

EJ1 Roller

Main Unit 40 sec.
4 EJ1 Driving Serrated Roller Main Unit 40 sec.
5 Post-Belt Roller Main Unit 40 sec.
6 Rear Belt Driving Serrated Roller Main Unit 40 sec.
7 Paper Feed Roller Inner Finisher 40 sec.

15 min.

*Since there is overlapping work, the time taken is calculated by adding the time disassembly and assembly the Ejector Roller (which takes the longest) and the time on each cleaning steps.
8 Paper Feed Plastic Roller Inner Finisher 5 min.
9 Paper Transport Roller Inner Finisher 8 min.
10 Paper Transport Plastic Roller Inner Finisher 8 min.
11 MID Roller Inner Finisher 10 min.
12 MID Plastic Roller Inner Finisher 10 min.
13 Paper Ejection Roller Inner Finisher 10 min.
14 Paper Ejection Plastic Roller Inner Finisher 10 min.

*3 Only machines equipped with floor finishers and inner trays require cleaning.
