306040206 PNC Punch Waste Tray Sensor

Program No. Menu Name Judgment method Remarks
306040206 PNC Punch Waste Tray Sensor Check by removing and inserting the Punch Waste Tray. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Open the Front Cover (A).

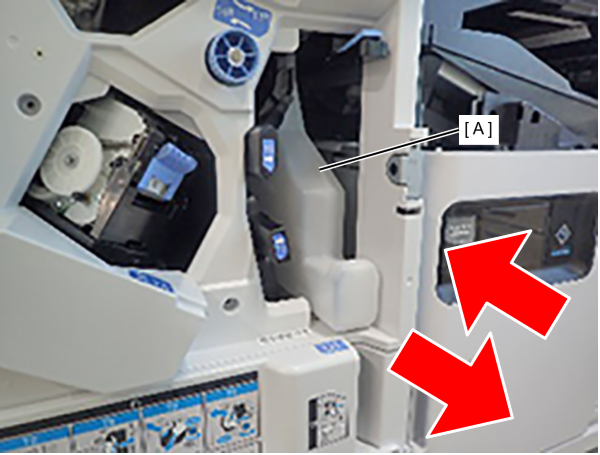

  2. Remove and insert the PNC Punch Waste Tray (A) to check the sensor detection status.
