Jam Processing Handle

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.

  2. Open the front cover (A).

  3. Remove the screw that secures the belt (B).
    • : 3x8DC/BK
  4. Remove one screw and slide the cover hinge (A) upward to remove it.
  5. Remove the front cover (B).

    • : 4x8D/P

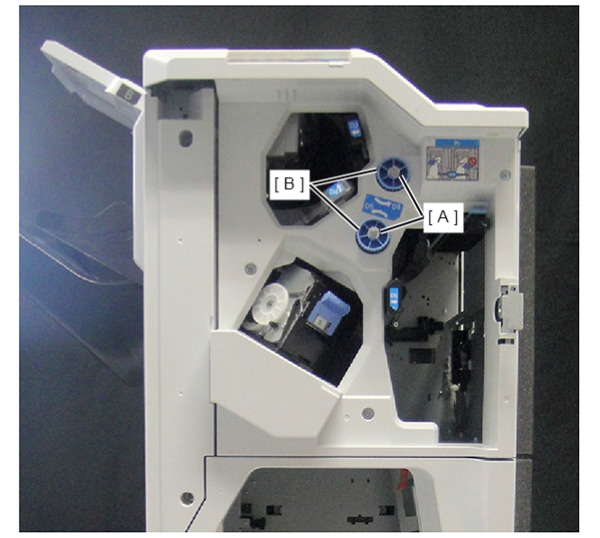

  6. Remove the 2 plastic E-rings (A) and remove the Jam Handle Paper (B).
