307020208 IN FIN Paper Guide HP Sensor

Program No. Menu Name Judgment method Remarks
307020208 IN FIN Paper Guide HP Sensor Check the sensor by gently moving the paper guide by hand.

TRUE: Detection
FALSE: No Detection
Default：TRUE
  1. Lift the Shaft (A) in the direction of the arrow.


    Caution / 注意

    Be careful not to touch the Anti Static Brush.

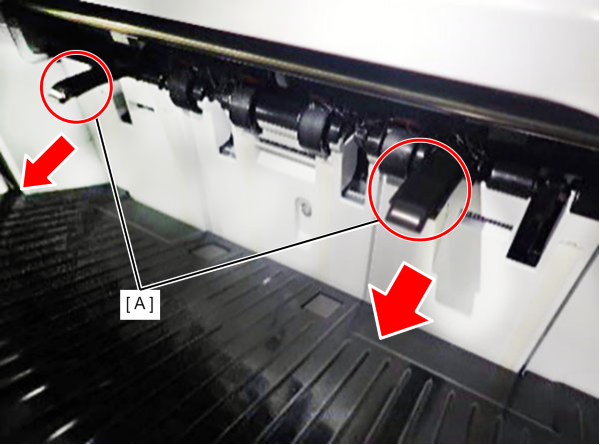

  2. Push the Paper Guide (A) in the direction of the arrow.
    * The sensor detection status returns to “TRUE” when you open and close the IN FIN cover.
