Paper Eject Upper Tray

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Using a flathead screwdriver, release the hooks (x2) on the top small cover and front (A).
  3. Slide the small top cover front (A) in the direction of the arrow to release the tabs (x2) and remove the cover.
  4. Using a flathead screwdriver, release the hooks (x2) on the small top cover and rear (A).
  5. Slide the small top cover rear (A) in the direction of the arrow to release the tabs (x2) and remove it.

  6. Remove 4 screws of the Top Cover (A).

  7. Release the hook (x2) and lift the Top Cover (A).

  8. Disconnect the cable (C) from the connector (B) and remove the Top Cover (A).


    • : 4x10DC

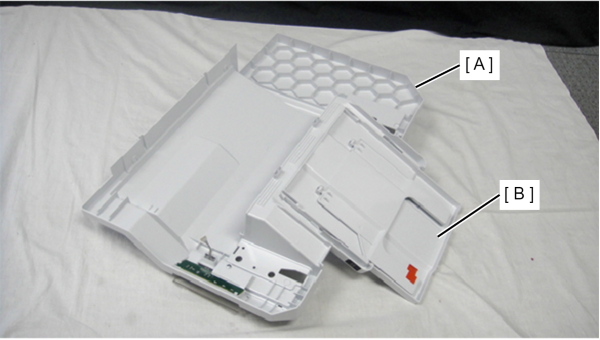

  9. Turn the finisher top cover (A) over.
  10. Pull out the Paper Ejection Upper Tray (B).
