301060201 1st Paper Eject Tray Pre-Eject Sensor

Program No. Menu Name Judgment method Remarks
301060201 1st Paper Eject Tray Pre-Eject Sensor Check by removing and inserting paper into the sensor section. TRUE: No Detection
FALSE: Detection
Default：TRUE
  1. Open the right door unit (A).
  2. Open the D3 unit (A).

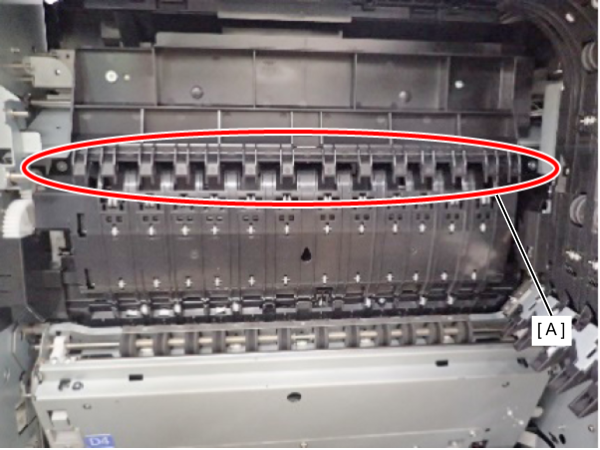

  3. Check the sensor detection status by inserting/removing a sheet of paper in/from the portion (A) in the figure.
