902 Data Transfer(User info ROM board failed)
Write back the backup data saved on the mech info ROM board to the user info ROM board.
Turn the power OFF.
Replace the failed user info ROM board with a new one (B). (User Information ROM Board)

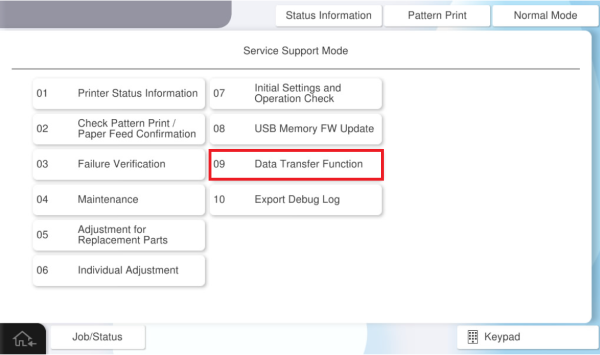

Start the service support mode from the power off state. (Starting Service Support Mode (AM-C6000/C5000/C4000) > Start from the power OFF)

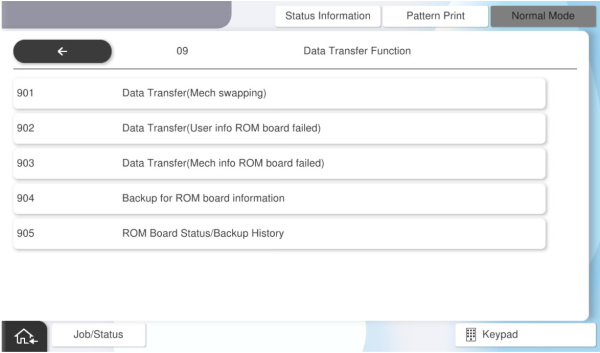

- Select [09 Data Transfer Function].

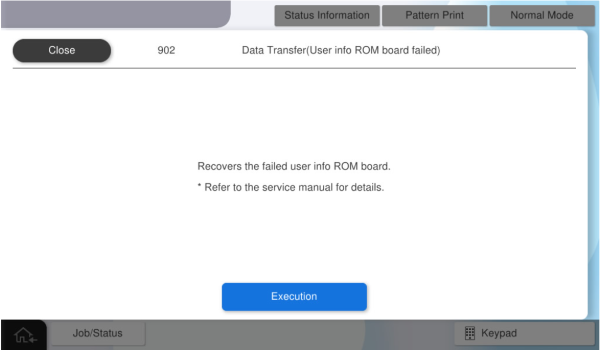

- Select [902 Data Transfer(User info ROM board failed)].
Press [Execution].
