High Capacity Unit


Motor / Solenoid / Clutch
No. Name Function Type

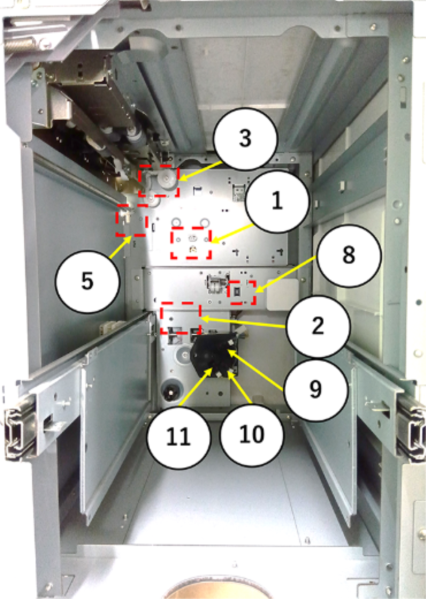

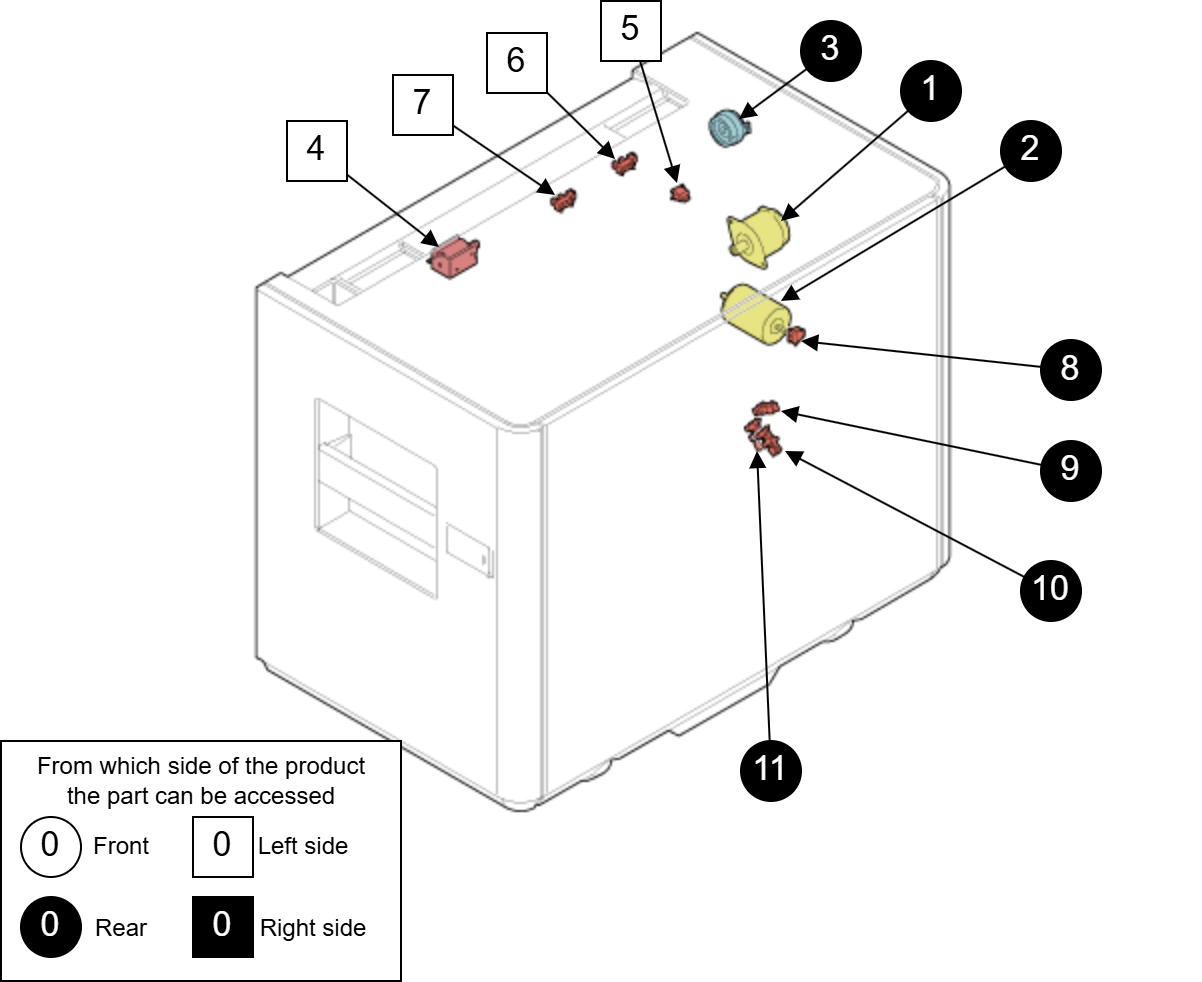

1 HC Paper Feed Motor Used for drive control of paper feed / conveyance rollers. DC brushless motor (24V)
2 HC Lift Motor Used for raising and lowering the bottom plate of the paper feed deck. Ascends as paper is fed.
3 HC Pickup Clutch Used for transmitting drive of the HC Paper Feed Motor to the pickup roller and the paper feed rollers. DC24V
4 HC Pickup Solenoid Switch the paper feed unit. Switches the paper feed unit to the paper feed position when feeding paper from a large capacity cassette. DC24V
Sensor
No. Name Function Type
5 HC Connection Switch Detects that the high capacity paper supply unit is connected to the main unit. Mechanical contacts

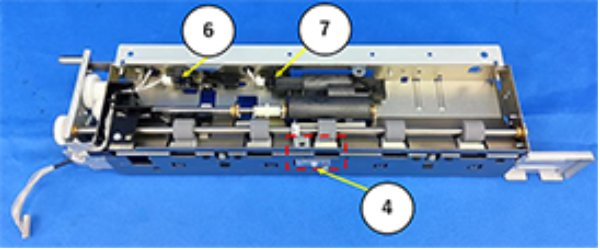

6 HC Paper Sensor Detects a paper jam inside the high capacity paper supply unit. Transmission type photo interrupter
7 HC Lift Upper Limit Sensor Detects that the bottom plate of the paper feed deck has reached its upper limit.
8 HC Deck Detection Switch Detects that the paper cassette is inserted. Mechanical contacts
9 HC Remaining Paper Sensor 1 Upper Detects the amount of paper remaining in the paper feed deck. Transmission type photo interrupter
10 HC Remaining Paper Sensor 2 Lower
11 HC Lift Lower Limit Sensor Detects that the bottom plate of the paper feed deck has reached its lower limit.
