201 Check Pattern

20101 Check Pattern

20102 Ruled Line Pattern

20103 Color Gradation Pattern (AM-M5500: Gradation Pattern)

20104 Black 25% Pattern

20105 Adsorption Check Pattern

20106 Blank Paper Feed(10 Sheet Simplex)

20107 Blank Paper Feed(1 Sheet Simplex)

20108 Blank Paper Feed(10 Sheet Duplex)

20109 Blank Paper Feed(1 Sheet Duplex)

20110 Special Gradation Pattern

20113 Other

Program No. Pattern Name Specifications Pattern Image (the arrow indicates the paper feed direction) Target image quality defect

20101

Check Pattern Print
  • Pattern outline: Print all “20102 Ruled Line Pattern” to “20105 Adsorption Check Pattern”.
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Number of prints: 6
 - -

20102

Ruled Line Pattern
  • Pattern outline: Black and green lines (AM-M5500: Black and Gray) are printed evenly spaced apart, and a black box surrounding the lines is also printed.
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Number of prints: 1

  • Ruled line misalignment

  • Character distortion

  • Color shift

  • Incorrect margins

20103

Color Gradation Pattern
(AM-M5500: Gradation Pattern)
  • Pattern outline: 4 gradation patterns
  • Paper size: A4 / Letter / A3 + / Super B

  • Paper type: Plain paper

  • Number of prints: 1
Note / 補足

A3 + / Super B output specifications / conditions

  • Specification: A square register mark line is printed at the A4 / Letter size position to make the A3 / Ledger size print area visible.
  • Paper type: Super fine paper (paper size: 329mm x483mm)
  • Feed Tray: Paper Tray
  • Output tray: Face-up output tray

  • White or dark lines

  • White or dark smudges

  • Color banding

  • Smeared printout 1 (paper is rubbed against head or rollers)

  • Cockling

  • Wrinkling of paper

  • Blank pages print

  • Entirely too dark printout

  • Ripple pattern

  • Strike-through

  • Faint Printout

20104

Black 25% Pattern

  • Pattern outline: Black (Duty 25%) uniform pattern

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 3

  • Diagonal Unevenness

  • Failure in fixing ink

  • White or dark banding

20105

Adsorption Check Pattern

  • Pattern outline:

    • Prints 20103 gradation pattern on one side, and feed through duplex path.

    • It ejects paper without printing on the other side.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

  • Ruled line misalignment

  • Color shift

20106

Blank Paper Feed(10 Sheet Simplex)

  • Pattern outline: 10 blank sheets are passed through the single-sided path.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 10

  • Ink smear 2 (smear on back side)

  • Ink smear 3 (roller mark smudges made by serrated roller and paper feed roller)

20107

Blank Paper Feed: 1 Sheet Simplex

  • Pattern outline: One blank sheet is passed through the single-sided path.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

  • Ink smear 2 (smear on back side)

  • Ink smear 3 (roller mark smudges made by serrated roller and paper feed roller)

20108

Blank Paper Feed(10 Sheet Duplex)

  • Pattern outline: 10 blank sheets are passed through the duplex path.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 10

  • Ink smear 3 (roller mark smudges made by serrated roller and paper feed roller)

20109

Blank Paper Feed: 1 Sheet Duplex

  • Pattern outline: One blank sheet is passed through the Duplex.

  • Paper size: A4/Letter

  • Paper type: Plain paper

  • Number of prints: 1

  • Ink smear 3 (roller mark smudges made by serrated roller and paper feed roller)

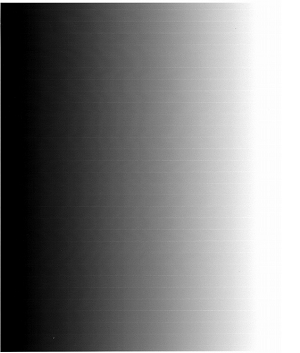

20110

Special Gradation Pattern

  • Dark lines

  • White lines
20113 Others

See below for details.

-

-
Program No. Pattern Name Setting Items Choice
20101 Check Pattern Print Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down output tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
20102 Ruled Line Pattern Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down output tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
20103 Color Gradation Pattern
(AM-M5500: Gradation Pattern)		 Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down Tray, Face-up Tray
Available Paper Sizes A4 (Vertical), Letter (Vertical), A3 + / Super B
20104 Black 25% Pattern Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down Tray, Face-up Tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
20105 Adsorption Check Pattern Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down output tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
20106 Blank Paper Feed(10 Sheet Simplex) Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down Tray, Face-up Tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
20107 Blank Paper Feed(1 Sheet  Simplex) Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down Tray, Face-up Tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
20108 Blank Paper Feed(10 Sheet Duplex) Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down Tray, Face-up Tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
20109 Blank Paper Feed(1 Sheet Duplex) Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit
Output tray Face-down Tray, Face-up Tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
20110 Special Gradation Pattern Feed Tray Paper Tray
Output tray Face-up output tray
Available Paper Sizes A4 (Vertical), Letter (Vertical)
Printing speed Full Plain, 3/4 Plain, 1/2 Plain, Low Plain, Low Matte
Caution / 注意

Make sure the paper orientation is as specified (LEF/Vertical).

If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
