Punch Front Cover

  1. Refer to the following to remove the inner punch unit from the inner finisher.
    Inner Punch Unit Installation Procedure

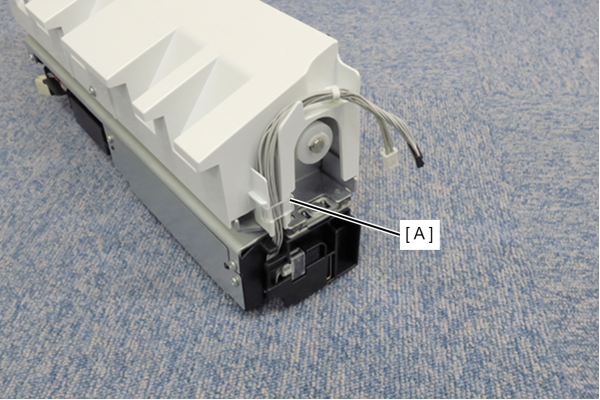

  2. Remove the wire stopper (A).

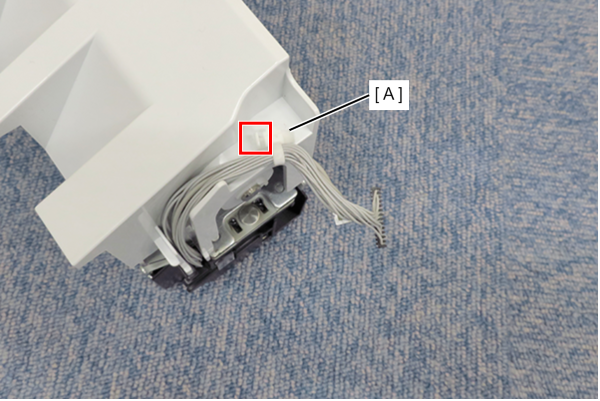

  3. Release the hook and remove the cable clamp (A).

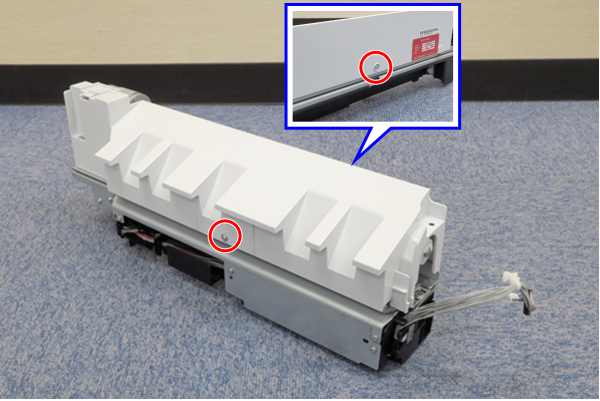

  4. Remove the 2 screws.

    • : 3x8 DC/P

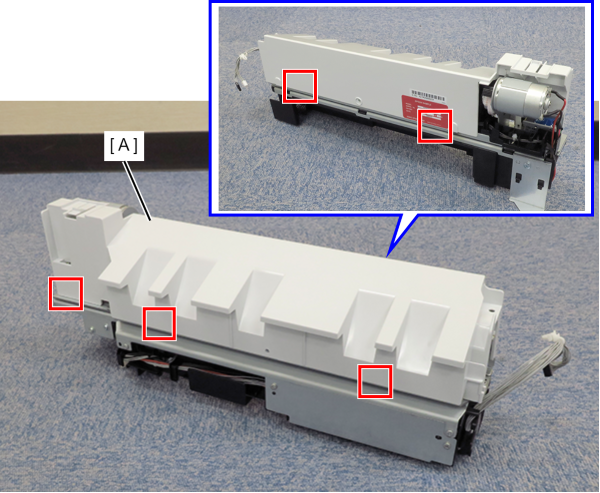

  5. Release the 5 hooks and remove the Punch Front Cover (A).
