C2 Pickup Unit

  1. Pull the lever to open the main unit paper feed cover (A).
  2. Open the additional cassette paper feed cover (A).

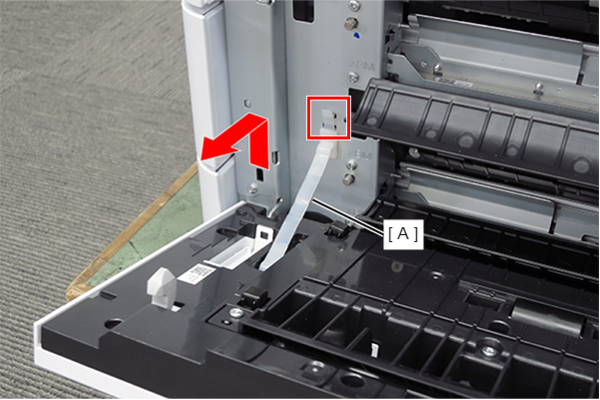

  3. Unhook the band (A) of the paper feed cover, and slide the band (A) in the direction of the arrow to remove it.

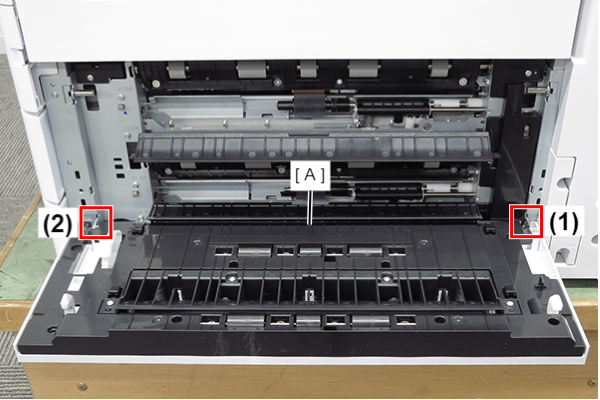

  4. Release and remove the main unit paper feed cover (A) from the two shafts of the main unit in the order shown in the figure below.

  5. Remove the C2 cassette (A).

    Assembly / 組み立て

    The corresponding cassette can be replaced with another cassette.
    In that case, follow the steps below.

    1. Loosen the two screws on the dial (A) and align the groove on the bearing (B) with the dowel on the dial (A).
    2. Replace the label (A) on the cassette.
  6. Remove the 2 screws.
  7. Slide the connector cover (A) in the direction of the arrow to release the hook and remove it.
    • : 3x8D
    Assembly / 組み立て

    Insert the hook of the connector cover (A) into the hole in the main unit, and attach it while holding the paper feed guide (B).
  8. Remove the cable (A) from the relay connector.

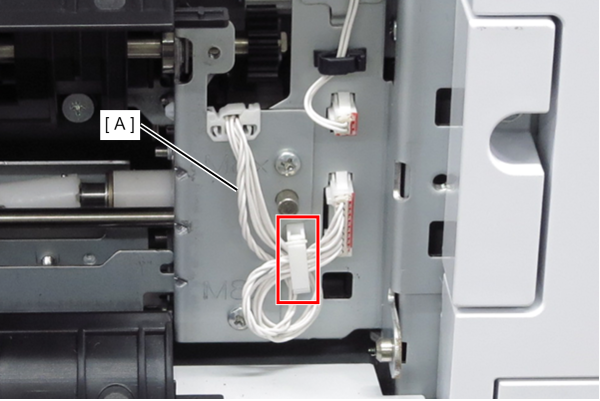

  9. Release the cable (A) from the clamp.

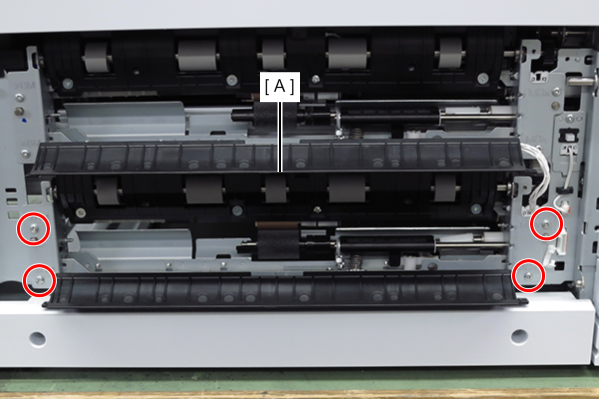

  10. Remove 4 screws.
    • : 3x8D
  11. Remove the C2 Pickup Unit (A) from the left shaft and remove it in the direction of the arrow.
