306020205 FIN Alignment Paddle HP Sensor

Program No. Menu Name Judgment method Remarks
306020205 FIN Alignment Paddle HP Sensor Check the sensor by rotating the shaft of the Alignment Paddle by hand. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Execute [306020103 FIN Stapler Carriage Drive Motor] in the Service Support mode.
  2. After performing step 1, open the Front Cover (A).

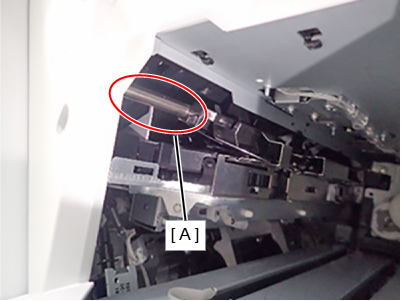

  3. Check the sensor detection status by rotating the shaft (A) of the Alignment Paddle.
