Bridge Unit-related - After replacement

Check Point / チェックポイント
  • Perform this adjustment before connecting the Floor Finisher to the printer.

  • When this menu is executed, the following menu is automatically executed.

    Program No. Menu Name
    60301 FIN Install Position Adjustment (H/W)

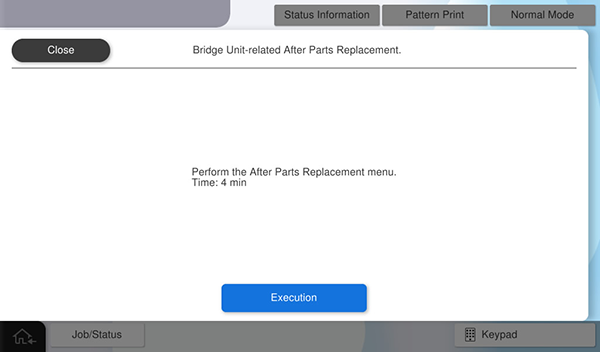

  1. Turn the power ON.

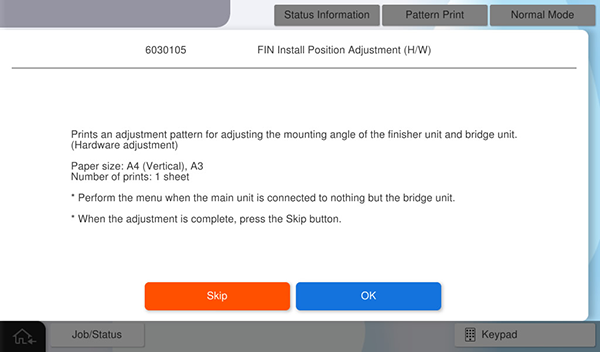

  2. Press [Execution].
  3. Press [OK].

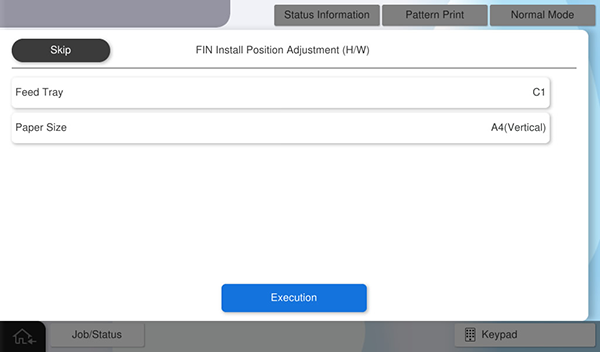

  4. Press each setting item button to make the print settings.


    The parameters that can be set are as follows.

    Setting Items Selection
    Feed Tray C1, C2, C3, C4
    Available Paper Sizes A4 (vertical), A3
  5. Press [Execute] to eject the paper.

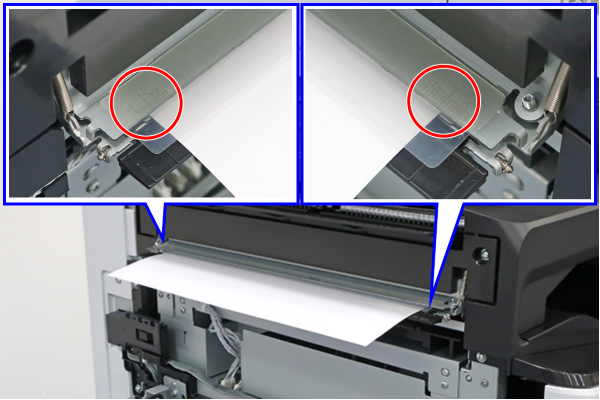

  6. Check how many scales the paper ejection positions on the front side and the back side are shifted from the center of the scale to either the front side or the back side.

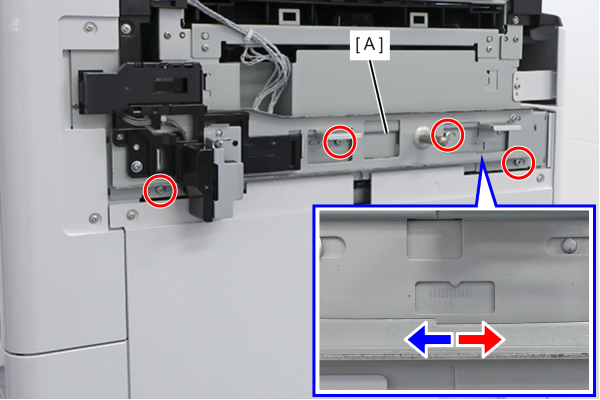

  7. Loosen the 4 screws on the adjustment plate (A), move the adjustment plate by the scale you checked in the previous step, and fix it with the 4 screws.

    • If it is shifted to the front side: Move the adjustment plate to the front side to adjust.
    • If it is shifted to the rear side: Move the adjustment plate to the rear side to adjust.
  8. Press [OK] to eject the paper again, and check the adjustment result.

    If the adjustment result is satisfactory, press [Skip] to proceed to the next step.
    If there is a problem with the adjustment result, repeat the adjustment from step 6.

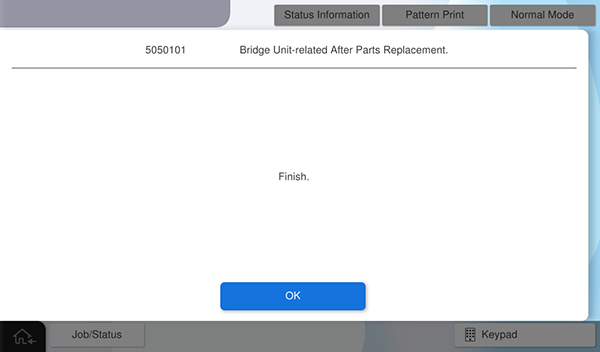

  9. Press [OK] to complete the menu.
