Saddle Unit

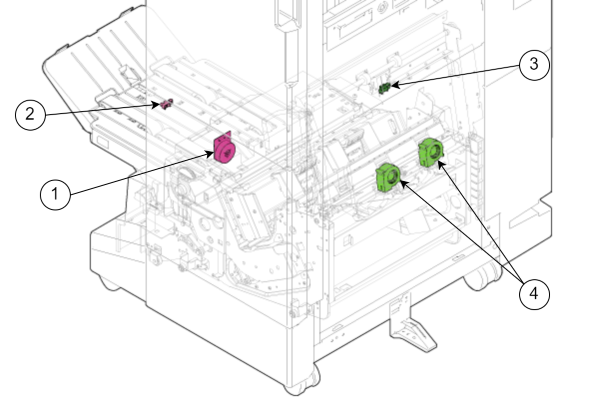

No. Name
1 SDL Paper Feed Tray Motor
2 SDL Paper Feed Tray Paper Detection Sensor
3 SDL Vertical Paper Transport Sensor
4 SDL Paper Transport Fan

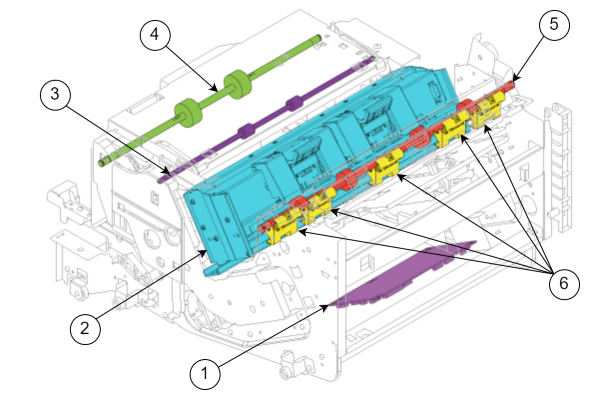

No. Name
1 Main Board
2 Stapler Unit
3 Folding Roller
4 Paper Ejection Roller
5 Paper Transport Roller
6 Paper Guide Assy

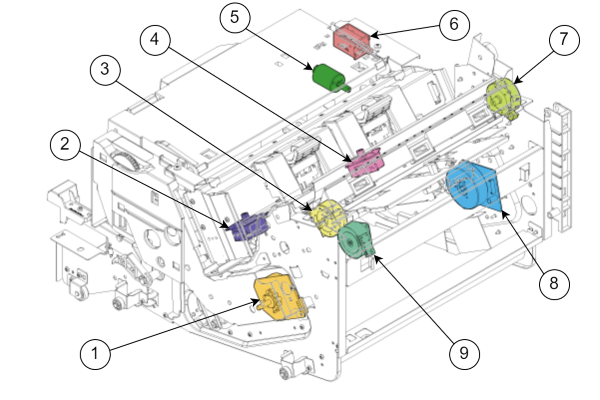

No. Name
1 SDL Folding Roller Motor
2 SDL Alignment Motor Lower
3 SDL Paper Bundle Lifting Drive Motor
4 SDL Alignment Motor Upper
5 SDL Eject Pressure Release Motor
6 SDL Three-fold Paper Feed Path Switching Solenoid
7 SDL Paper Feed Motor
8 SDL Folding Blade Drive Motor
9 SDL Paper Bundle Lowering Drive Motor

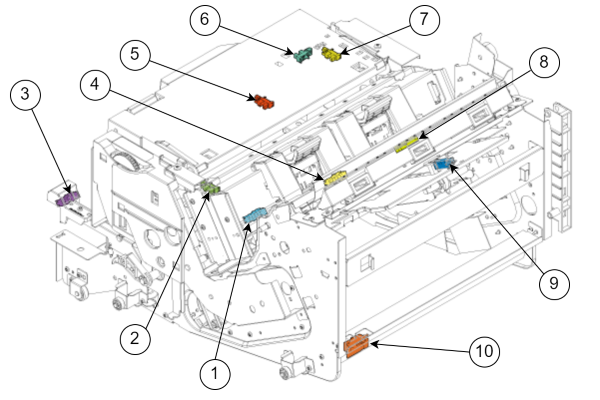

No. Name
1 SDL Processing Part Paper Detection Sensor
2 SDL Alignment Plate HP Sensor Upper
3 SDL Tray Sensor
4 SDL Paper Bundle Lifting HP Sensor
5 SDL Alignment Plate HP Sensor Lower
6 SDL Paper Eject Sensor
7 SDL Eject Pressure Release HP Sensor
8 SDL Paper Feed Sensor
9 SDL Paper Bundle Lowering HP Sensor
10 SDL Unit Sensor
