USB Port Assy (Authentication Printing)

  1. Release the 2 dowels with a flathead screwdriver and remove the Front Cover (A).
  2. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  3. Remove one screw, and remove the front cover upper (A) in the direction of the arrow while pressing the hook.

    • : 3x10DW
  4. Slide the front decorative cover upper (A) in the direction of the arrow to remove it.
  5. Release the hook and remove the Front Decorative Cover Lower (A) in the direction of the arrow.
  6. Remove 6 screws and remove the Front Right Cover (A).

    • : 3x10DW/P

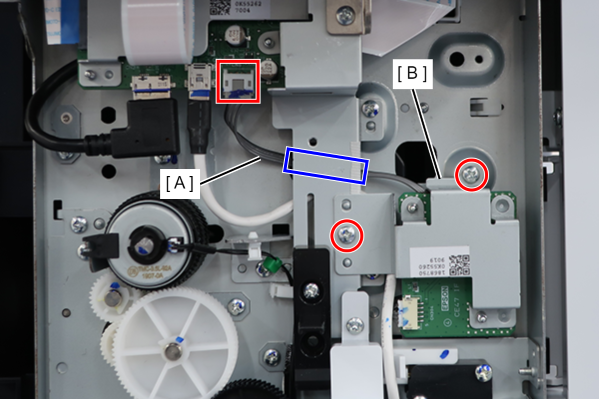

  7. Disconnect the cable (A) from the connector.
  8. Remove the 2 screws and remove the USB Port Assy(Authentication printing) (B).

    • :3x8D/P
    Assembly / 組み立て

    When assembling the USB Port Assy(Authentication printing) (B), assemble the cable (A) through the USB Port Assy(Authentication printing) (B) and the rear side of the plate.
