Right Door Cable Cover

  1. Pull the lever to open the Right Door Unit (A).

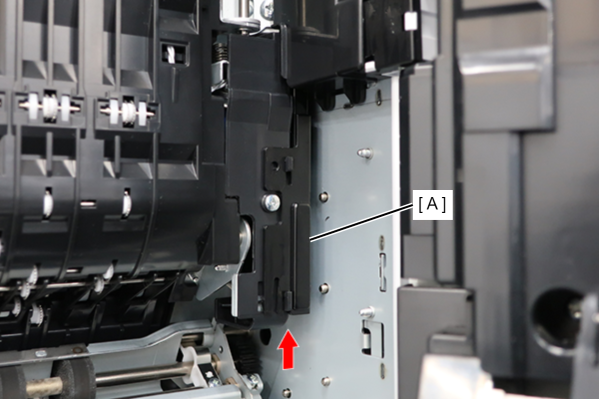

  2. Lift up to remove the middle door cable cover (A).

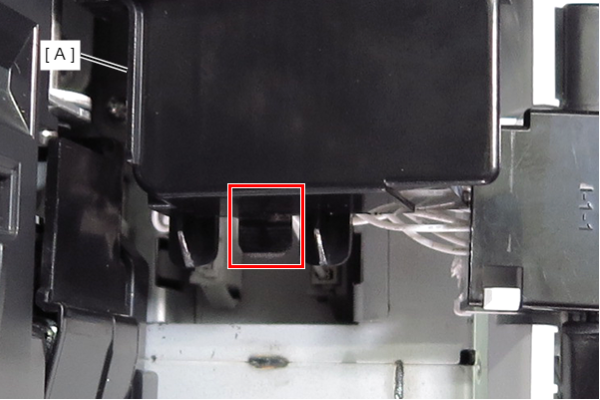

  3. Release the hook and remove the right door cable cover (A).



    Assembly / 組み立て

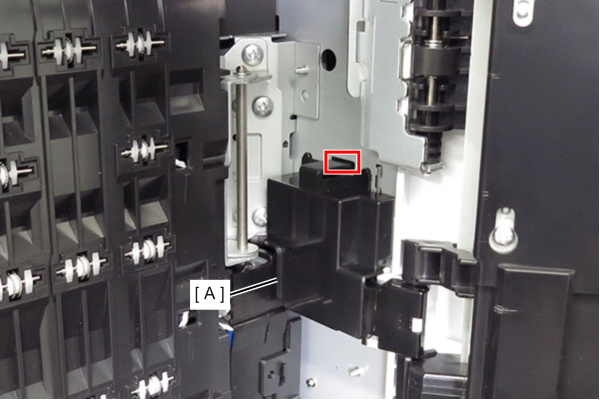

    • Insert the tab of the right door cable cover (A) into the frame.

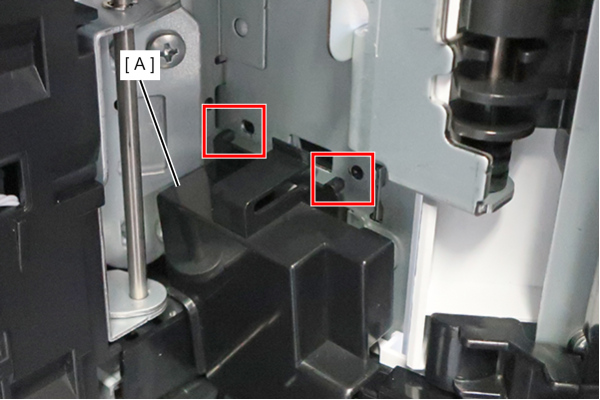

    • Align the two dowels on the right door cable cover (A) with the two holes on the frame and install it.
