305010203 BRG Paper Path PF Sensor 2

Program No. Menu Name Judgment method Remarks
305010203 BRG Paper Path PF Sensor 2 Check by passing the paper through the paper feed path.

TRUE: No Detection
FALSE: Detection
Default：TRUE

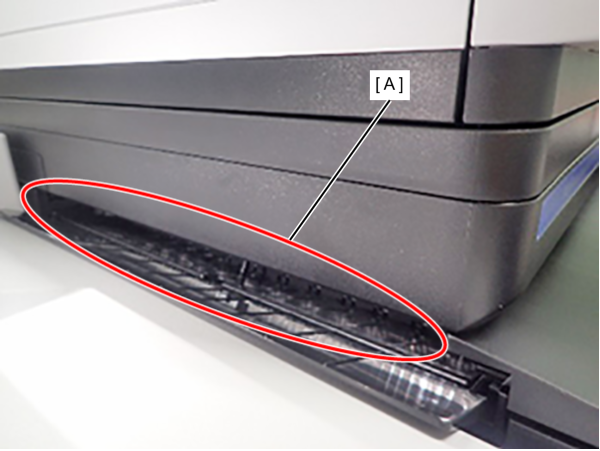

  1. Check the sensor detection status by inserting/removing a sheet of paper in/from the portion (A) in the figure.
