Document Stopper

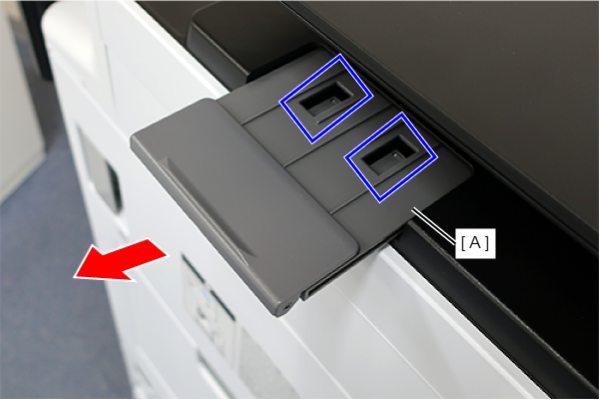

Pull out the Document Stopper (A).
Remove the Document Stopper (A) by pulling it in the direction of the arrow while releasing the 2 hooks.
