60208 ADF Scaling Offset
Perform this adjustment if the customer tells you that there is some problem with the scan magnification when scanning using the ADF.
Consult with the customer while checking the actual scanned data to determine the adjustment value.

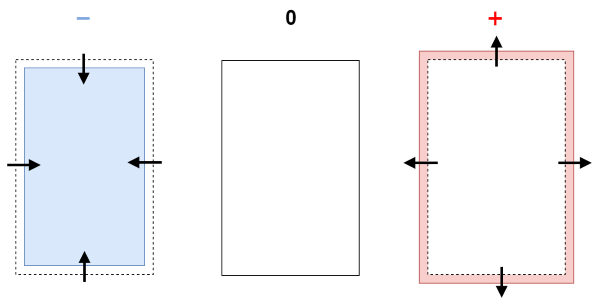

Manually adjust the scanning magnification for ADF scanning.
| Setting value name | Input range | Initial value | Amount of change |
|---|---|---|---|
| Scaling offset (600dpi) | -127~128 | 0 | （B: 4 mm） |
| Scaling offset (300dpi) | -127~128 | 0 | （B: 4 mm） |
- Start the service support mode.
- Select [06 Individual Adjustment].
- Select the [ADF/SCN] tab.

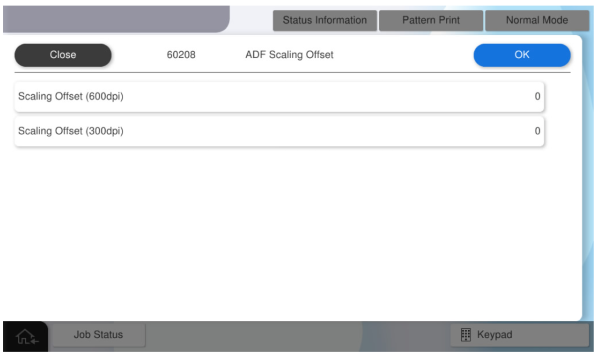

- Select [60208 ADF Scaling Offset].
- Select [Scaling Offset (600dpi)] and [Scaling Offset (300dpi)], enter the desired adjustment value, and click [OK].
