Punch Processing-related (Inner) - Before replacement

  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select the [Inner Finisher] tab.

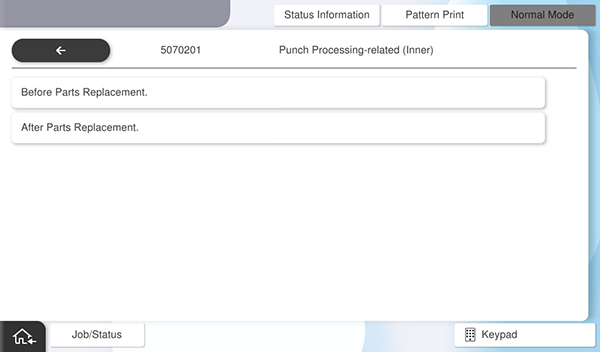

  4. Select [5070201 Punch Processing-related (Inner)].

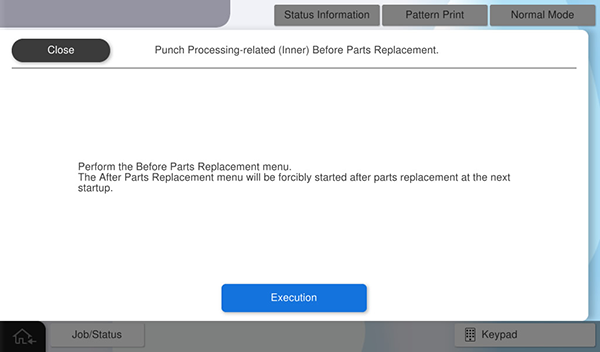

  5. Select [Before Parts Replacement].
  6. Press [Execution].

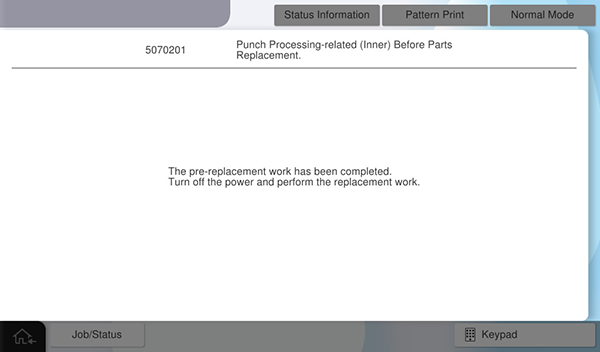

  7. Turn Off the main unit when the following screen is displayed.

    After replacement menu will start automatically at next startup.
