After replacement work for C2 Pickup Roller / C2 Pickup Unit
- Turn the power ON.
- Press [Execution].

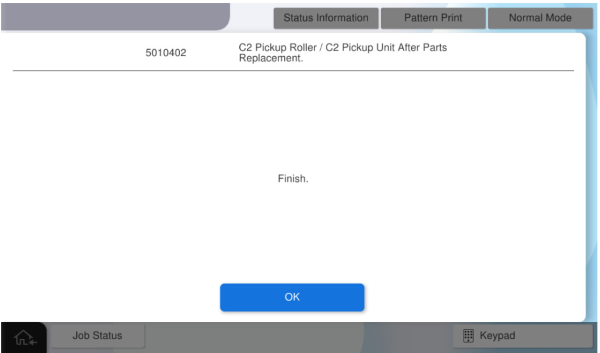

- Press [OK] to complete the menu.
