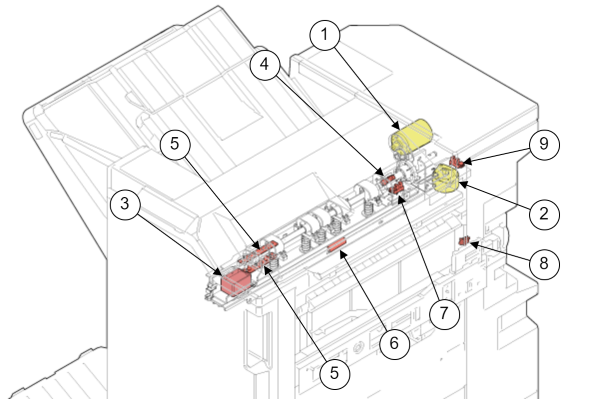

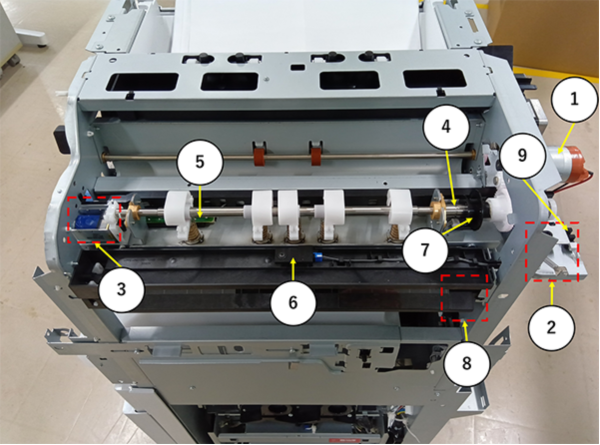

Floor Punch Unit
Motor / Solenoid
| No. | Name | Function | Type |
|---|---|---|---|
| 1 | PNC Punch Drive Motor | Used for punch operation drive. | - |
| 2 | PNC Carriage Drive Motor | Used for the sliding operation of the punch in the paper width direction. | |
| 3 | PNC Punch Hole Switching Solenoid |
Used for switching the punch hole position. |
Sensor
| No. | Name | Function | Type |
|---|---|---|---|
| 4 | PNC Cam HP Sensor | Used for detecting the position of a punch operation (punch cam operation). | - |
| 5 | PNC Paper Size Detection Sensor 1 PNC Paper Size Detection Sensor 2 PNC Paper Size Detection Sensor 3 PNC Paper Size Detection Sensor 4 |
Used for detecting the paper size. | |
| 6 | PNC Punch Waste Tray Full Detection Sensor | Detects whether the punch waste tray is full or not. | |
| 7 | PNC Pulse Sensor | Used for detecting the position of a punch operation (punch cam operation). | |
| 8 | PNC Punch Waste Tray Sensor | Detects whether the punch waste tray is installed or not. | |
| 9 | PNC HP Sensor | Used for detecting the home position of the punch sliding operation in the paper width direction. |
