C4 Pickup Unit

  1. Open the additional cassette paper feed cover (A).
  2. Remove the one screw.

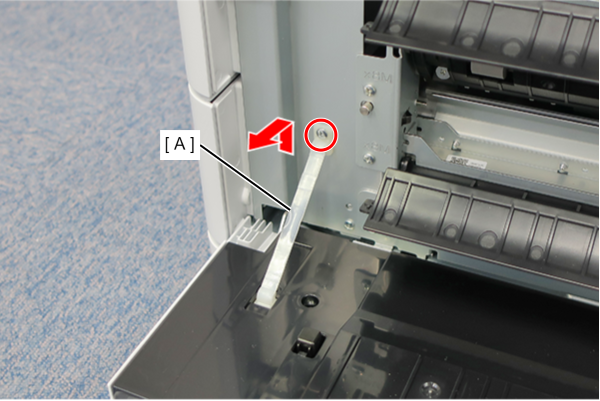

  3. Unhook the band (A) and slide the band (A) in the direction of the arrow to remove it.

    • : 3x8D

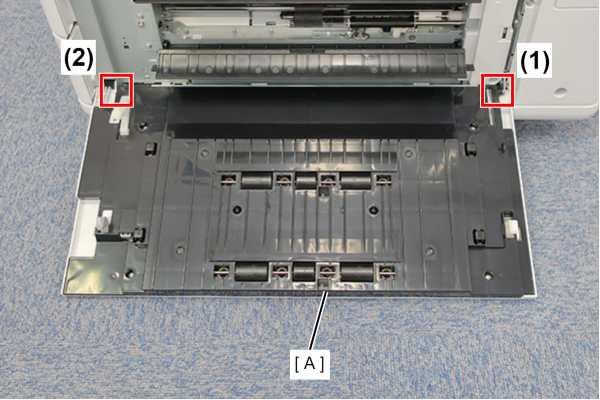

  4. Release and remove the Additional Paper Feed Cover (A) from the 2 shafts of the main unit in the order shown in the figure below.
  5. Remove the C4 cassette (A).


    Assembly / 組み立て

    The corresponding cassette can be replaced with another cassette.
    In that case, follow the steps below.

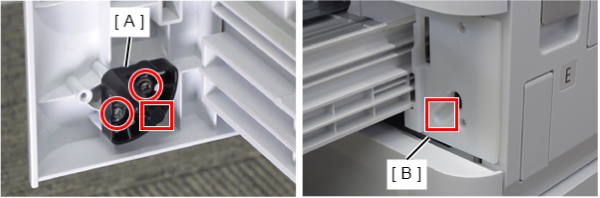

    1. Loosen the two screws on the dial (A) and align the groove on the bearing (B) with the dowel on the dial (A).

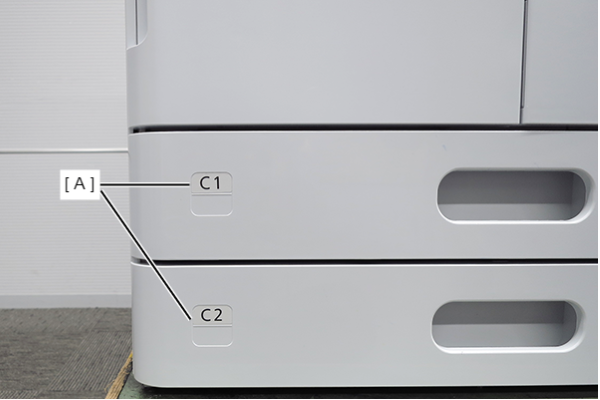

    2. Replace the label (A) on the cassette.

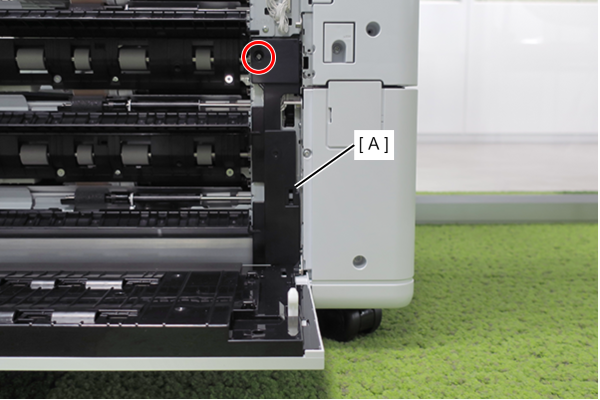

  6. Remove 1 screw and remove the connector cover (A).

    • : 3x8D

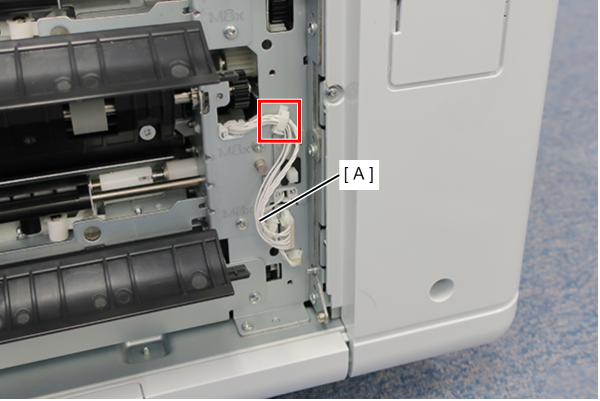

  7. Remove the cable (A) from the relay connector.
  8. Release the cable (A) from the clamp.

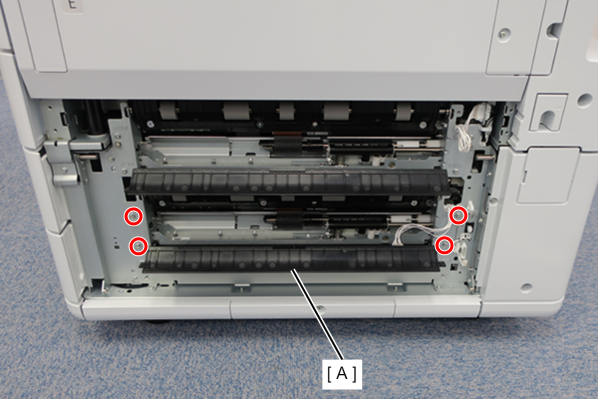

  9. Remove 4 screws.
    • : 3x8D

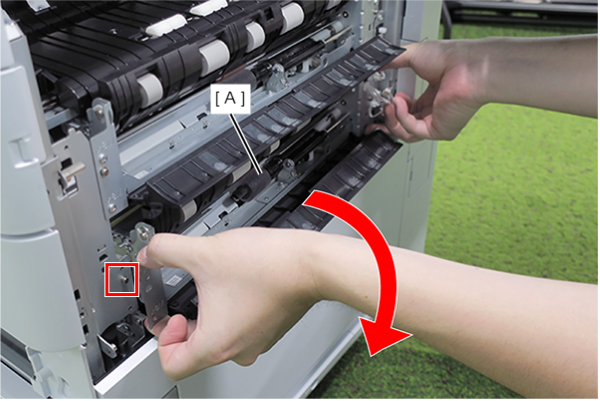

  10. Remove the C4 paper feed unit (A) from the left shaft and remove it in the direction of the arrow.
