306030209 FIN Lower Tray Upper Sensor

Program No. Menu Name Judgment method Remarks
306030209 FIN Lower Tray Upper Sensor Shield the sensor from light with paper, etc. TRUE: Detection
FALSE: No Detection
Default: FALSE

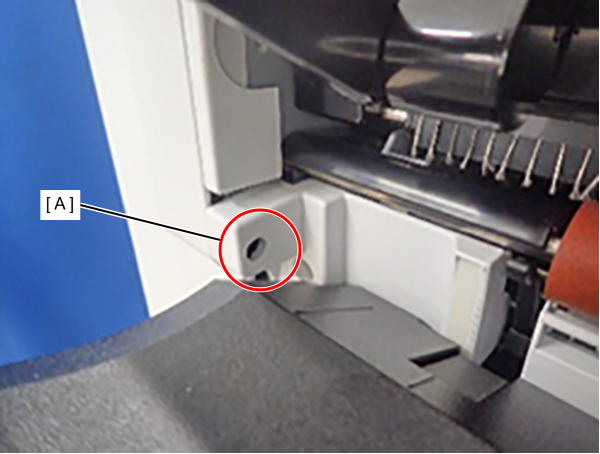

  1. Check the sensor detection status by holding a sheet of paper or your hand over the point (A) shown below.
