301070201 Main Unit Paper Feed Cover Sensor

Program No. Menu Name Judgment method Remarks
301070201 Main Unit Paper Feed Cover Sensor Open and close the Main Unit Paper Feed Cover.

TRUE: Cover open detection
FALSE: Cover close detection
Default: FALSE

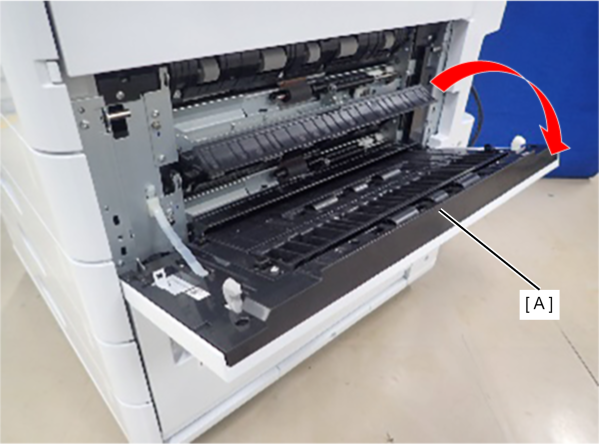

  1. Check the sensor detection status by opening/closing the Main Unit Paper Feed Cover (A).
