Document Mat Assy

  1. Open the ADF (A).
  2. Remove the 10 hook and loop fasteners, and remove the Document Mat Assy (A).


Assembly / 組み立て
  • Assemble the Document Mat Assy using the following procedure.

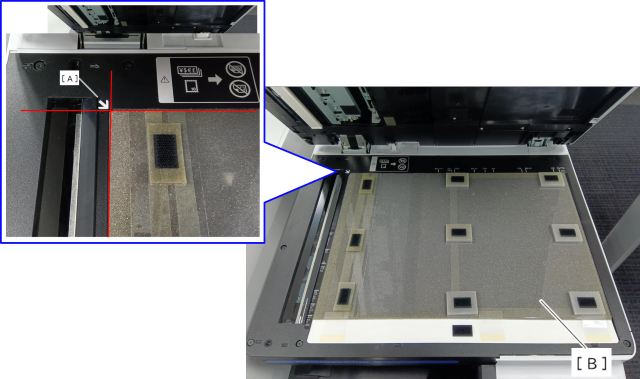

  1. Place the Document Mat Assy (B) so that the white part of the Document Mat Assy (B) is facing the front of the product and align it with the coner mark (A).

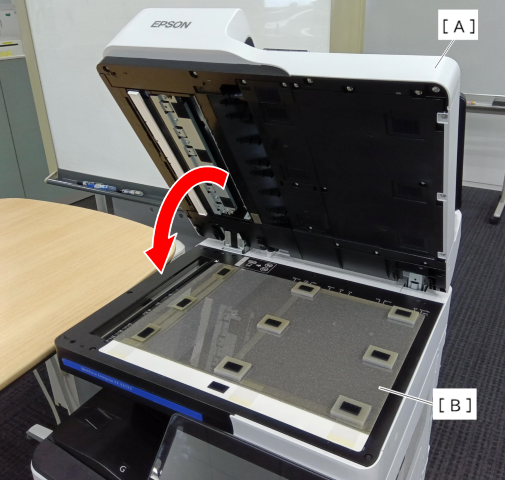

  2. Close the ADF unit (A) and assemble the Document Mat Assy (B).
