306020208 FIN Bundle Ejection Unit HP Sensor

Program No. Menu Name Judgment method Remarks
306020208 FIN Bundle Ejection Unit HP Sensor Lift the bundle ejection unit and check. TRUE: Detection
FALSE: No Detection
Default: FALSE

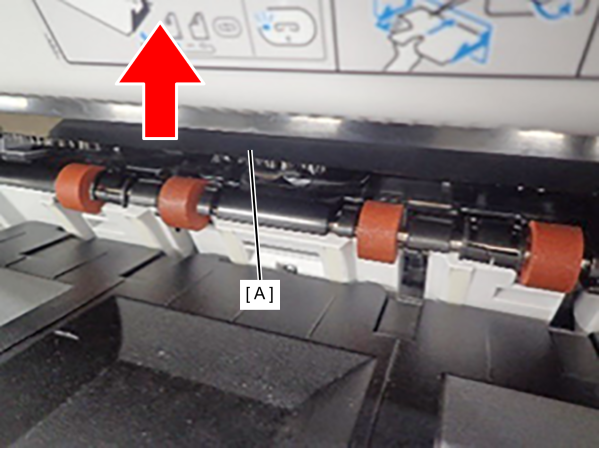

  1. Lift the Bundle Ejection Unit (A) in the direction of the arrow and check the sensor detection status.


    Caution / 注意

    Be careful not to touch the Anti Static Brush.
