Floor Finisher

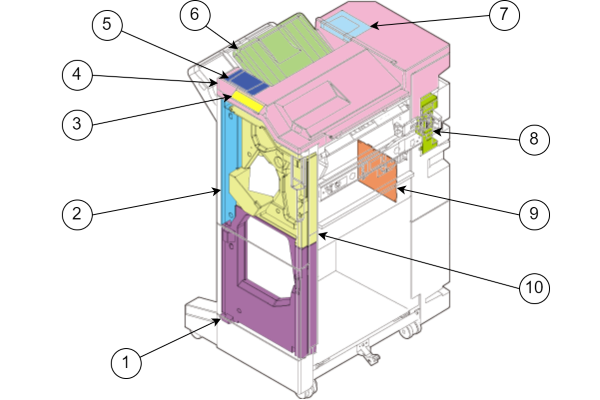

No. Name
1 Front Inner Cover, Lower
2 Front Inner Cover, Sub
3 Stapler Operation Panel
4 Top Cover
5 Top Small Cover, Front
6 Paper Eject Upper Tray
7 Top Small Cover, Rear
8 Rear Cover, Sub
9 Main Board
10 Front Inner Cover, Upper

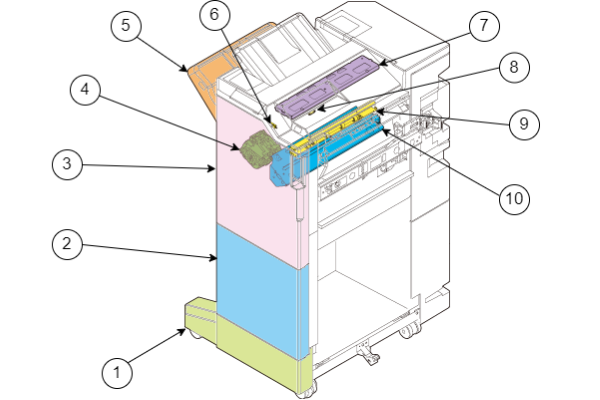

No. Name
1 Front Caster Cover
2 Front Cover, Lower
3 Front Cover
4 Stapler Unit
5 Lower Tray
6 FIN Paper Ejection Cover Sensor
7 Upper Paper Eject Feed Sub Roller Unit
8 FIN Upper Tray Full Stack Sensor
9 Paper Transport Plastic Roller Unit
10 Stapler Rail Unit

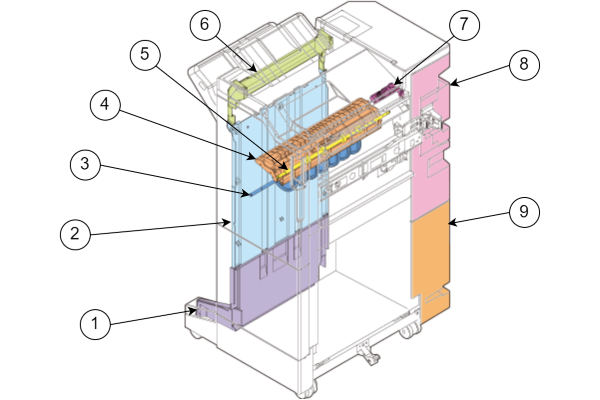

No. Name
1 Left Side Cover, Lower
2 Left Side Lifting Guide Cover
3 Drum Roller
4 Drum Paper Transport Guide
5 Paper Feed Roller
6 Lower Paper Ejection Cover
7 FIN MID/ Drum Sensor Unit
8 Rear Cover, Upper
9 Rear Cover, Lower

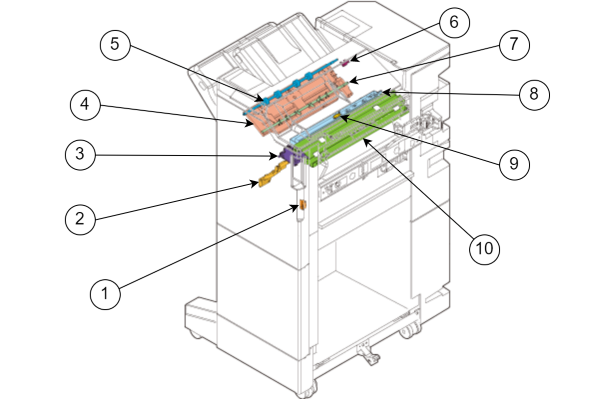

No. Name
1 FIN Front Cover Sensor
2

Paper Transport Guide, Jam Processing Guide, D6
3 Lower Unit
4 Upper Unit
5 Lower Paper Eject Roller
6 FIN Shift Arm Release Position HP Sensor
7 Paddle Shaft Assy
8 Paper Transport Guide, Jam Processing Guide, D1
9 FIN Paper Transport Sensor
10 Frame Top Plate

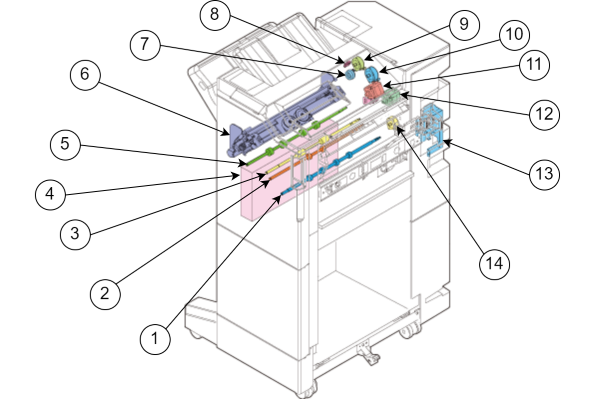

No. Name
1 Bundle Paper Ejection Unit Lift Up Shaft
2 Upper Tray Paper Transport Roller
3 Lower Tray Paper Transport Roller
4 Paper Holding Unit
5 Upper Tray Paper Eject Roller
6 Shift Arm Unit
7 FIN Paper Ejection Clutch
8 FIN Shift Arm Set Position HP Sensor
9 FIN Shift Arm Release Motor
10 FIN Bundle Paper Eject Unit Drive Motor
11 FIN MID Drive Motor
12 FIN Paper Feed Motor
13 Tray Lifting Gear Block Assy
14 FIN Wait Drum Motor
