Cap slide motor Assy

  1. Release the 2 dowels with a flathead screwdriver and remove the Front Cover (A).
  2. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  3. Remove one screw, and remove the front cover upper (A) in the direction of the arrow while pressing the hook.

    • : 3x10DW
  4. Slide the front decorative cover upper (A) in the direction of the arrow to remove it.
  5. Release the hook and remove the Front Decorative Cover Lower (A) in the direction of the arrow.
  6. Remove 6 screws and remove the Front Right Cover (A).

    • : 3x10DW/P
  7. Remove 4 screws and remove the Front Left Cover (A).

    • : 3x10DW/P

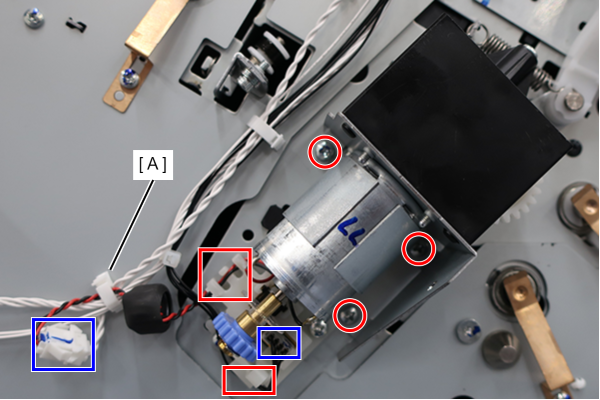

  8. Release the clamp (A) and remove the cable from the connector.
  9. Release the cable from the lead holder.
  10. Remove 3 screws.

    • :3x8D/P
  11. Pull the Cap Slide Motor Assy (A) forward.

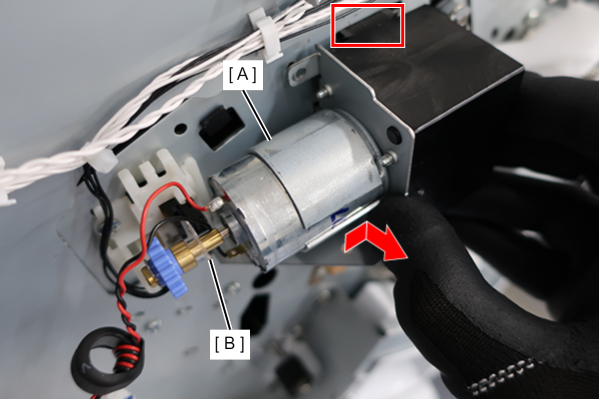

  12. Remove the Cap Slide Motor Assy (A) in the direction of the arrow while avoiding the sensor so as not to damage the scale (B).

Assembly / 組み立て

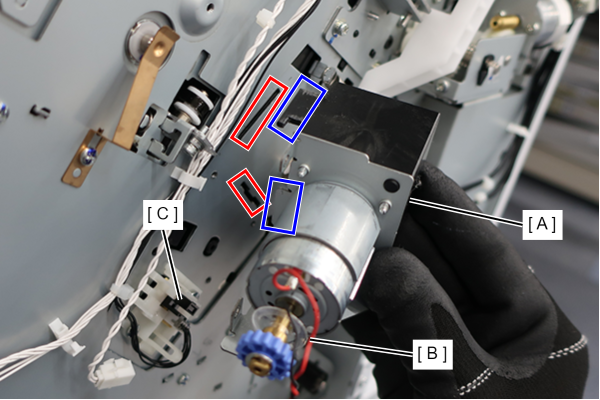

When installing the Cap Slide Motor Assy (A), align the 2 protrusions with the cutouts on the main unit, and install so that the scale (B) does not hit the sensor (C).
