6011601 Special Ink Charge 1

Perform ink charging and head data transfer after Head Unit/Ink Supply Unit replacement.

* Basically, there is no opportunity to perform these separately.

  1. Start the service support mode.
  2. Select [06 Individual Adjustment].
  3. Select the [Main Unit・Additional Cassette] tab.
  4. Select the [60116 Special Ink Charge] tab.

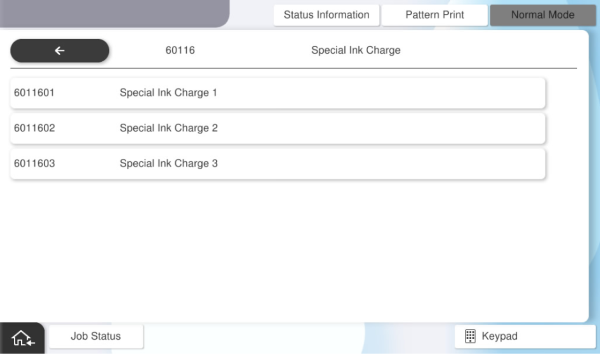

  5. Select the [60116 Special Ink Charge 1] tab.

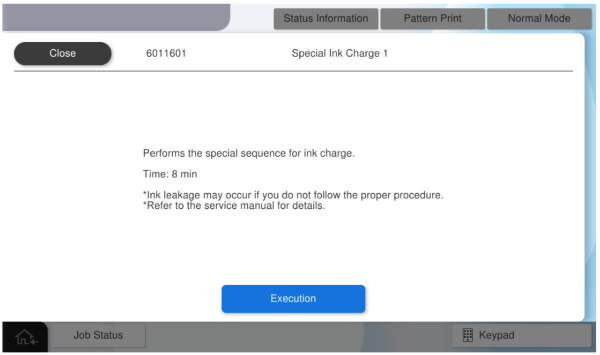

  6. Press [Execution].
