307040202 IN PNC Punch Waste Tray Full Detection Sensor

Program No. Menu Name Judgment method Remarks
307040202 IN PNC Punch Waste Tray Full Detection Sensor Shield the sensor from light and check. TRUE: Full
FALSE: No Full
Default: FALSE

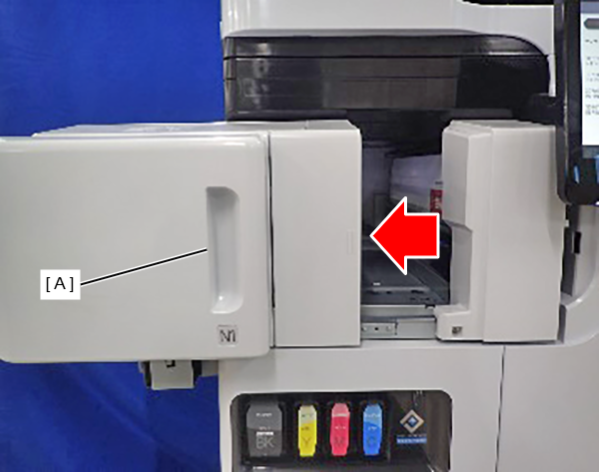

  1. Slide the N1 (A) hook of the Inner Finisher in the direction of the arrow and pull it out.

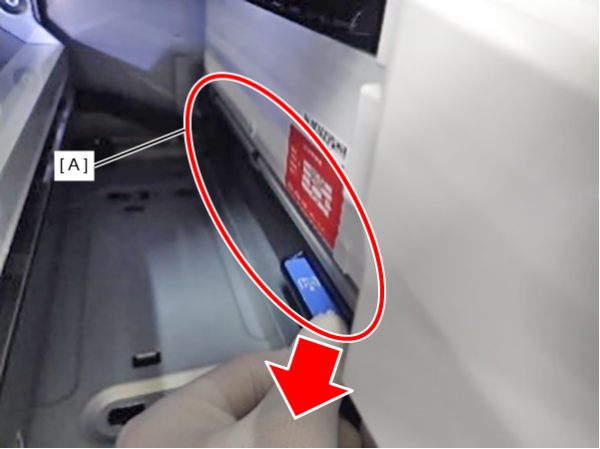

  2. Pull out the punch waste tray (A) in the direction of the arrow.

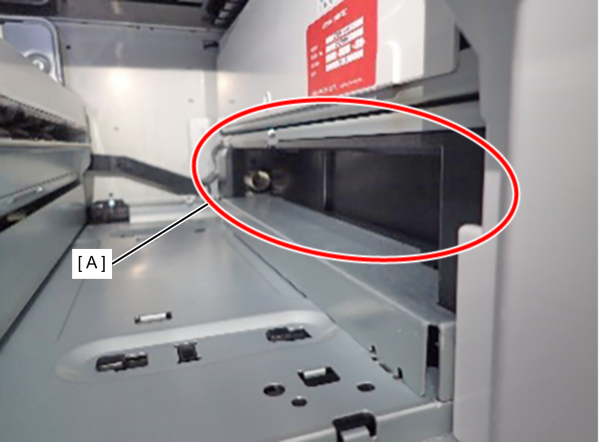

  3. Check the detection status of the sensor by holding your hand over the point (A) shown below.
