Follower Roller Assy
- Pull the lever to open the Right Door Unit (A).

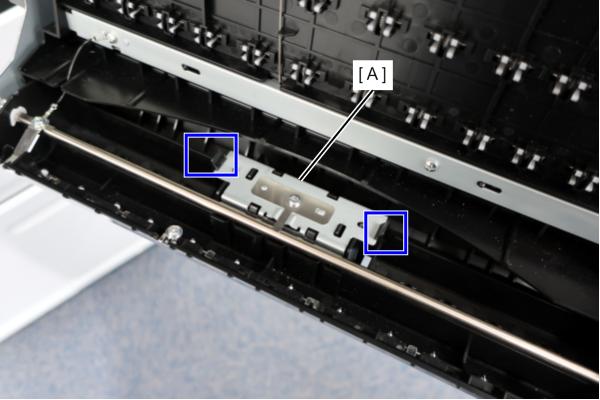

- Release the 2 hooks and remove the driven roller Assy (A).
