306050202 SDL Processing Part Paper Detection Sensor

Program No. Menu Name Judgment method Remarks
306050202 SDL Processing Part Paper Detection Sensor Check by passing the paper through the paper feed path. TRUE: Detection
FALSE: No Detection
Default: FALSE
  1. Open the U1 Cover (A).

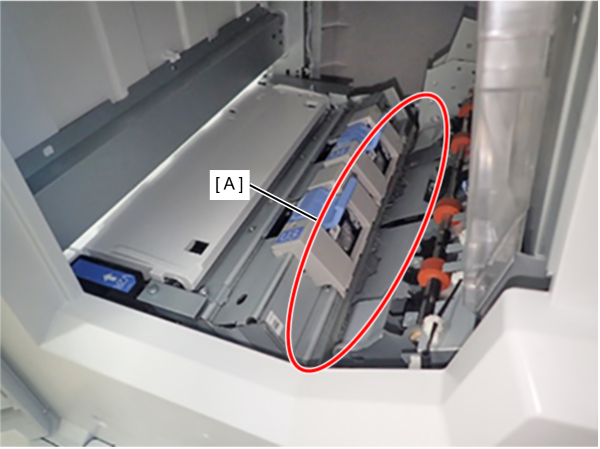

  2. Check the sensor detection status by inserting a sheet of paper in the portion (A) shown below.
