Head Unit- Before replacement

Check Point / チェックポイント

When this menu is executed, the following menu is automatically executed.

Program No. Menu Name
60105 Head Data Transfer: Before Head Replacement
Caution / 注意

The sequence ends with error if the consumables run out during the sequence. Make sure to start over if the sequence stopped in the process.
  1. Start service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select [Main Unit] tab.
  4. Select [5010101 Head Unit].

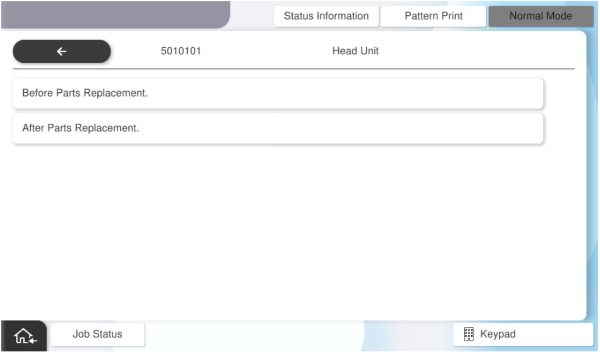

  5. Select [Before Parts Replacement].

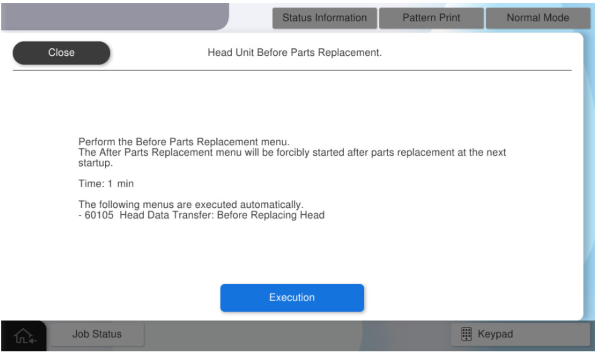

  6. Press [Execution].

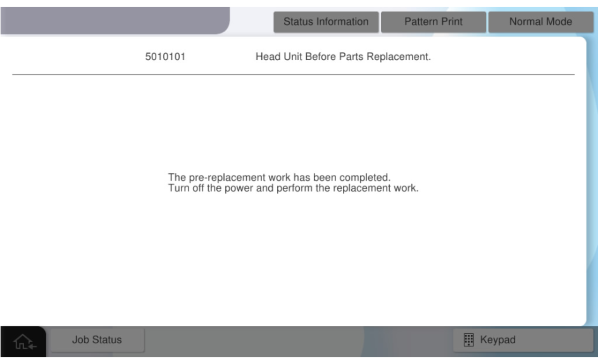

  7. Turn Off the main unit when the following screen is displayed.

    After replacement menu will start automatically at next startup.
